NSN 5325-00-181-1408
Part Details | TURNLOCK FASTENER LOCK SPRING
5325-00-181-1408 A spring-tempered wire item used to secure a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cammed groove of the STUD, TURNLOCK FASTENER and securing it by means of its spring action.
Alternate Parts: 14947603, 149476-03, SB32SSPS, SB3-2SSPS, SB32SS, SB3-2SS, S235A178103, S235A178-103, 5325-00-181-1408, 00-181-1408, 5325001811408, 001811408
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 12, 1969 | 00-181-1408 | 18420 ( LOCK SPRING, TURNLOCK FASTENER ) |

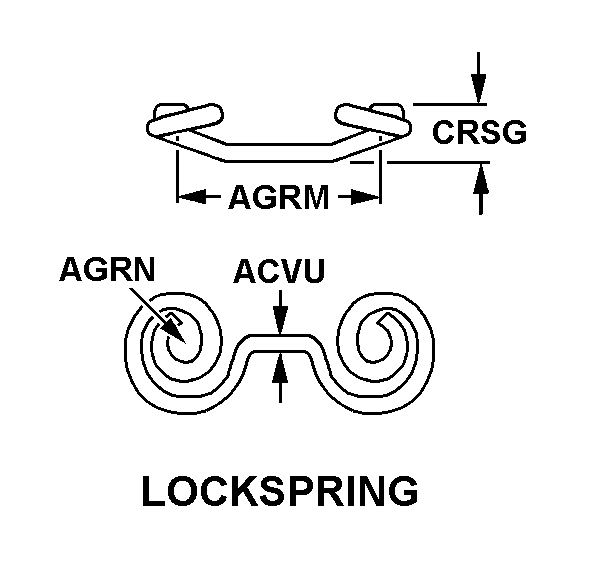

REFERENCE DRAWINGS & PICTURES
LOCKSPRING
Cross Reference | NSN 5325-00-181-1408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 149476-03 | 35351 | GE AVIATION SYSTEMS LLC |
| SB3-2SSPS | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
| SB3-2SS | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
| S235A178-103 | 78711 | TELEPHONICS CORPORATIONDBA COMMUNICATIONS SYSTEMS DIVISION |
Technical Data | NSN 5325-00-181-1408
| Characteristic | Specifications |
|---|---|
| LOCKSPRING STYLE | LOCKSPRING |
| STOCK DIAMETER | 0.045 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN EYES | 0.688 INCHES NOMINAL |
| EYE DIAMETER | 0.093 INCHES NOMINAL |
| LOCKSPRING OVERALL HEIGHT | 0.150 INCHES NOMINAL |
