NSN 5325-00-181-1530
Part Details | RETAINING RING
5325-00-181-1530 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: 10547505, 105475-05, 5325-00-181-1530, 00-181-1530, 5325001811530, 001811530
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 12, 1969 | 00-181-1530 | 07623 ( RING, RETAINING ) |
REFERENCE DRAWINGS & PICTURES
ROUND

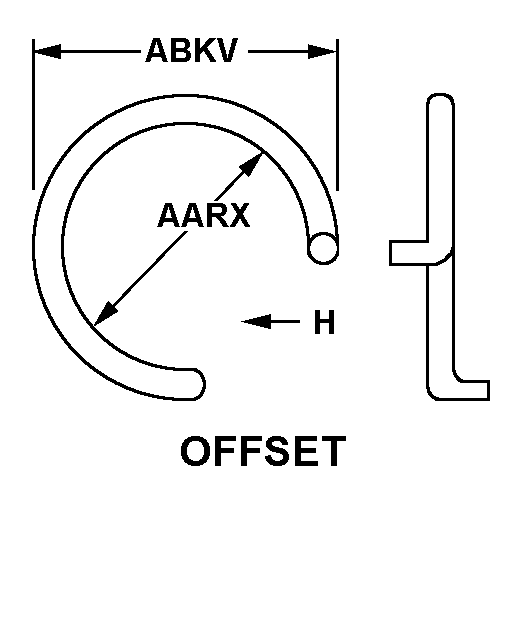

OFFSET
Cross Reference | NSN 5325-00-181-1530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105475-05 | 35351 | GE AVIATION SYSTEMS LLC |
Technical Data | NSN 5325-00-181-1530
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | OFFSET |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| USAGE DESIGN | INTERNAL |
| SURFACE TREATMENT | PASSIVATE |
| INSIDE DIAMETER | 0.604 INCHES MINIMUM AND 0.644 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.653 INCHES MINIMUM AND 0.695 INCHES MAXIMUM |
| MATERIAL DIAMETER | 0.025 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
