NSN 5325-00-202-2053
Part Details | METALLIC GROMMET
5325-00-202-2053 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Alternate Parts: MILG16491TYPE3CLASS3SIZE5, NASM16491 TY III CL3 SZ5, 5325-00-202-2053, 00-202-2053, 5325002022053, 002022053
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-202-2053 | 06314 ( GROMMET, METALLIC ) |
REFERENCE DRAWINGS & PICTURES

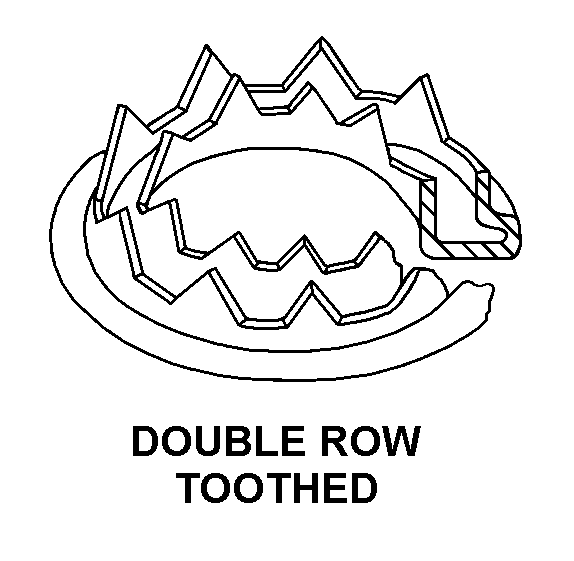

DOUBLE ROW TOOTHED
TAPERED ROUND TYPE
FLANGE
Cross Reference | NSN 5325-00-202-2053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILG16491TYPE3CLASS3SIZE5 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| NASM16491 TY III CL3 SZ5 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5325-00-202-2053
| Characteristic | Specifications |
|---|---|
| BARREL STYLE | TAPERED ROUND TYPE |
| BARREL HEIGHT | 0.380 INCHES NOMINAL |
| BARREL OUTSIDE DIAMETER | 0.642 INCHES NOMINAL |
| BARREL LARGEST OUTSIDE DIAMETER | 0.800 INCHES NOMINAL |
| FLANGE STYLE | FLANGE |
| FLANGE OUTSIDE DIAMETER | 1.285 INCHES NOMINAL |
| WASHER STYLE | DOUBLE ROW TOOTHED |
