NSN 5325-00-202-2407
Part Details | SNAP FASTENER POST
5325-00-202-2407 A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC.
Alternate Parts: MS279835N, MS27983-5N, MS279835N, MS27983-5N, 5325-00-202-2407, 00-202-2407, 5325002022407, 002022407
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-202-2407 | 16558 ( POST, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

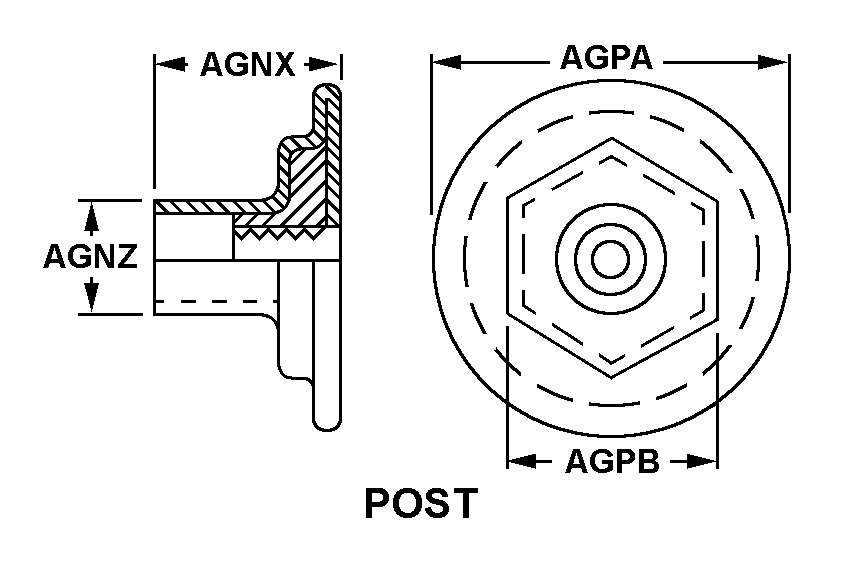

POST
Cross Reference | NSN 5325-00-202-2407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27983-5N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS27983-5N | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5325-00-202-2407
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER POST STYLE | POST |
| POST OVERALL LENGTH | 0.281 INCHES NOMINAL |
| POST SHANK DIAMETER | 0.171 INCHES NOMINAL |
| POST BASE DIAMETER | 0.593 INCHES NOMINAL |
| POST BASE WIDTH ACROSS FLATS | 0.343 INCHES NOMINAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.099-56 UNF |
