NSN 5325-00-202-2481
Part Details | TURNLOCK FASTENER RECEPTACLE
5325-00-202-2481 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Alternate Parts: 99808, 9980890P130, 99808-90P130, 9980890, 99808-90, 99808, 99808P130, 5325-00-202-2481, 00-202-2481, 5325002022481, 002022481
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-202-2481 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

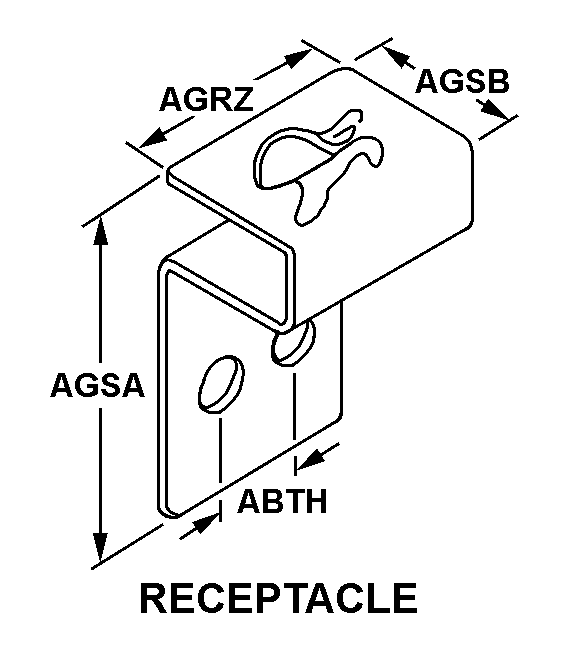

REFERENCE DRAWINGS & PICTURES
PLAIN W/MOUNTING HOLE
RECEPTACLE
Cross Reference | NSN 5325-00-202-2481
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 99808 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
| 99808-90P130 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| 99808-90 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| 99808 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| 99808P130 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-202-2481
| Characteristic | Specifications |
|---|---|
| TURNLOCK RECEPTACLE STYLE | RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 0.625 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.766 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.531 INCHES NOMINAL |
| MOUNTING STYLE | PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
