NSN 5325-00-298-1392
Part Details | SNAPSLIDE FASTENER LATCH
5325-00-298-1392 An item which is a part of FASTENER, SNAPSLIDE and is used in conjunction with a LATCH GUIDE, SNAPSLIDE FASTENER and a STUD, SNAPSLIDE FASTENER. It is operated with a sliding motion and is secured to the stud by means of the spring action of notched rest.
Alternate Parts: K8890645SUB0PT4, K8890645SUB0PT4, MS2133212, MS21332-12, NASM2133212, NASM21332-12, NASM21332, 1400036000, 140-0036-000, 5325-00-298-1392, 00-298-1392, 5325002981392, 002981392
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-298-1392 | 17528 ( LATCH, SNAPSLIDE FASTENER ) |
REFERENCE DRAWINGS & PICTURES

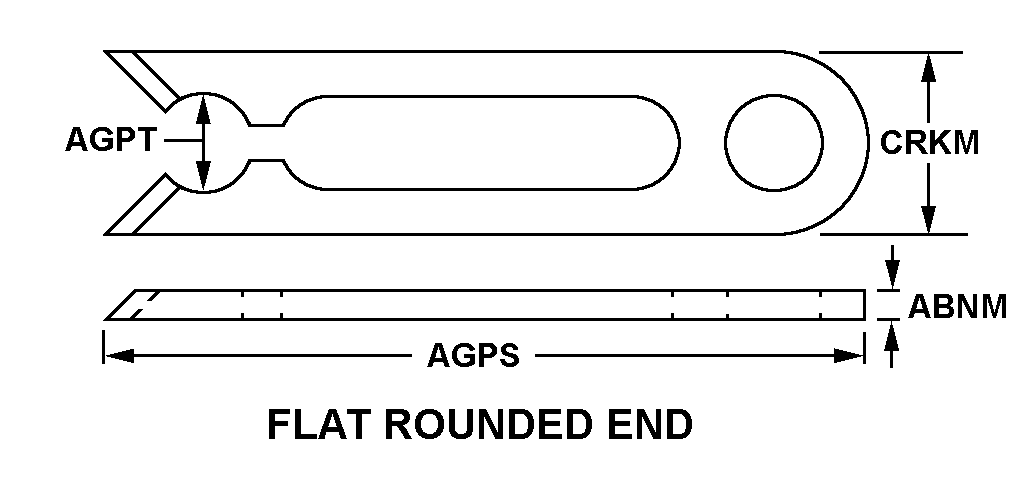

FLAT ROUNDED END
Cross Reference | NSN 5325-00-298-1392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K8890645SUB0PT4 | 11447 | L3 TECHNOLOGIES, INC.DBA COMMUNICATION SYSTEMS - EAST |
| K8890645SUB0PT4 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| MS21332-12 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| NASM21332-12 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| NASM21332 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| 140-0036-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5325-00-298-1392
| Characteristic | Specifications |
|---|---|
| LATCH STYLE | FLAT ROUNDED END |
| THICKNESS | 0.079 INCHES NOMINAL |
| LATCH OVERALL LENGTH | 1.812 INCHES NOMINAL |
| NOTCH DIAMETER | 0.312 INCHES NOMINAL |
