NSN 5325-00-321-4269
Part Details | TURNLOCK FASTENER EJECTOR SPRING
5325-00-321-4269 A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position.
Alternate Parts: 2600ES, 2600-ES, 2600ES, 214A8301, 214A830-1, 1126507, 1126503, 12Z1212074, 12Z12120-74, 5325-00-321-4269, 00-321-4269, 5325003214269, 003214269
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-321-4269 | 18424 ( EJECTOR SPRING, TURNLOCK FASTENER ) |

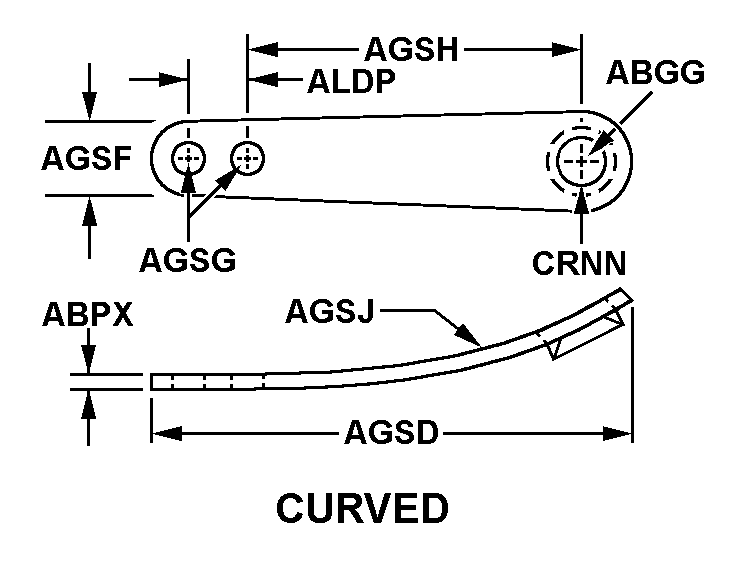

REFERENCE DRAWINGS & PICTURES
CURVED
Cross Reference | NSN 5325-00-321-4269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2600-ES | D0680 | ALCOA FASTENING SYSTEMSFAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2600ES | 71286 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 214A830-1 | 03640 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 1126507 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
| 1126503 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
| 12Z12120-74 | 94135 | NAVAL ORDNANCE STANDARDS |
Technical Data | NSN 5325-00-321-4269
| Characteristic | Specifications |
|---|---|
| EJECTOR SPRING STYLE | CURVED |
| RADIUS | 0.281 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.018 INCHES NOMINAL |
| SPRING OVERALL LENGTH | 3.375 INCHES NOMINAL |
| SPRING WIDTH | 0.438 INCHES NOMINAL |
| SPRING MOUNTING HOLE DIAMETER | 0.141 INCHES NOMINAL |
| DISTANCE FROM GROMMET HOLE CENTER TO MOUNTING HOLE CENTER | 2.500 INCHES NOMINAL |
| BEND RADIUS | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SPRING MOUNTING HOLES | 0.375 INCHES NOMINAL |
| EJECTOR SPRING HOLE DIAMETER | 0.312 INCHES NOMINAL |
