NSN 5325-00-351-0412
Part Details | SNAP FASTENER CLINCH PLATE
5325-00-351-0412 A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting.
Alternate Parts: 114858, MS2797765B, MS27977-65B, BL33, 5325-00-351-0412, 00-351-0412, 5325003510412, 003510412
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-351-0412 | 16557 ( CLINCH PLATE, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

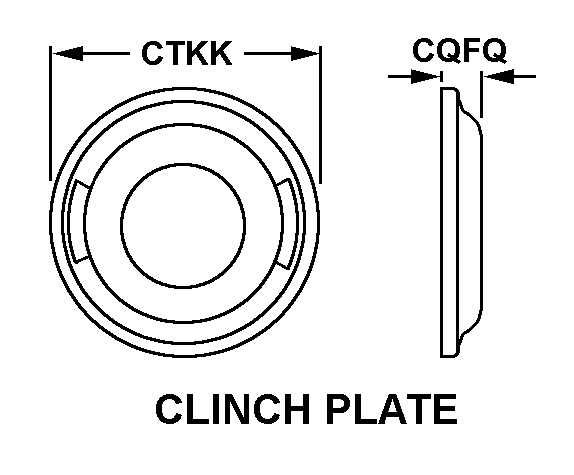

CLINCH PLATE
Cross Reference | NSN 5325-00-351-0412
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114858 | 24617 | GENERAL MOTORS CORP |
| MS27977-65B | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| BL33 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-351-0412
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER CLINCH PLATE STYLE | CLINCH PLATE |
| PLATE OVERALL HEIGHT | 0.047 INCHES NOMINAL |
| CLINCH PLATE DIAMETER | 0.700 INCHES NOMINAL |
