NSN 5325-00-359-6844
Part Details | SNAP FASTENER CAP
5325-00-359-6844 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.
Alternate Parts: AN2276B, AN227-6B, 5325003596844, MS279801B, MS27980-1B, MS279801B, MS27980-1B, 806785, MS279801B, MS27980-1B, AN2276B, AN227-6B, X210128BLK, X2-10128BLK, X210128K5000, X2-10128K5000, 670, 5325-00-359-6844, 00-359-6844, 5325003596844, 003596844
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-359-6844 | 16556 ( CAP, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

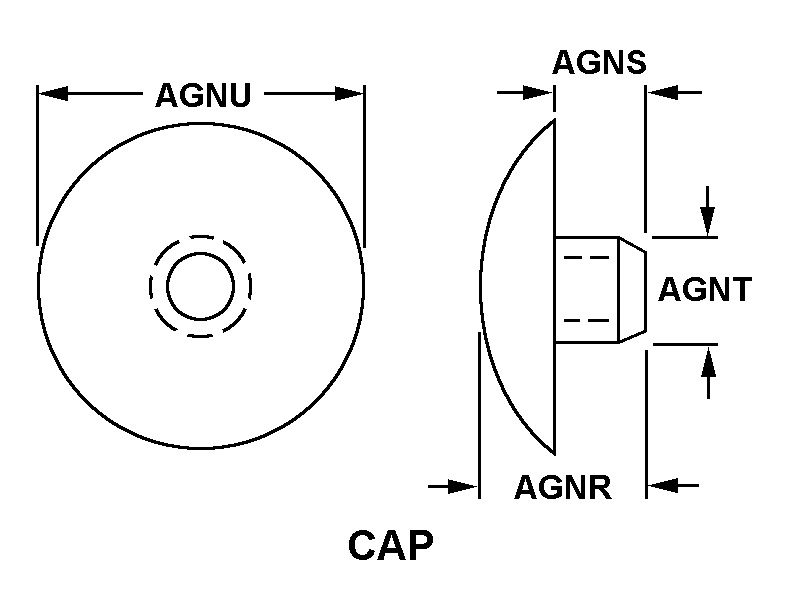

CAP
Cross Reference | NSN 5325-00-359-6844
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-6B | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 5325003596844 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| MS27980-1B | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS27980-1B | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| 806785 | 19203 | PICATINNY ARSENAL |
| MS27980-1B | 0ZBE8 | TRIMAN INDUSTRIES INC |
| AN227-6B | 01359 | TRIUMPH THERMAL SYSTEMS - MARYLAND,INC. |
| X2-10128BLK | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| X2-10128K5000 | 90763 | TRW ASSEMBLIES AND FASTENERS GROUPFASTENERS DIV |
| 670 | 83058 | TRW ASSEMBLIES AND FASTENERS GROUPFASTENERS DIV |
Technical Data | NSN 5325-00-359-6844
| Characteristic | Specifications |
|---|---|
| CAP STYLE | CAP |
| CAP OVERALL LENGTH | 0.297 INCHES NOMINAL |
| CAP SHANK LENGTH | 0.172 INCHES NOMINAL |
| CAP SHANK DIAMETER | 0.156 INCHES NOMINAL |
| CAP HEAD DIAMETER | 0.609 INCHES NOMINAL |
