NSN 5325-00-391-0147
Part Details | TURNLOCK FASTENER EYELET
5325-00-391-0147 A metallic item designed to be inserted into a preformed hole to guide and retain a STUD, TURNLOCK FASTENER. Excludes EYELET, METALLIC.
Alternate Parts: GSA4T188, 5325-00-391-0147, 00-391-0147, 5325003910147, 003910147
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-391-0147 | 18422 ( EYELET, TURNLOCK FASTENER ) |

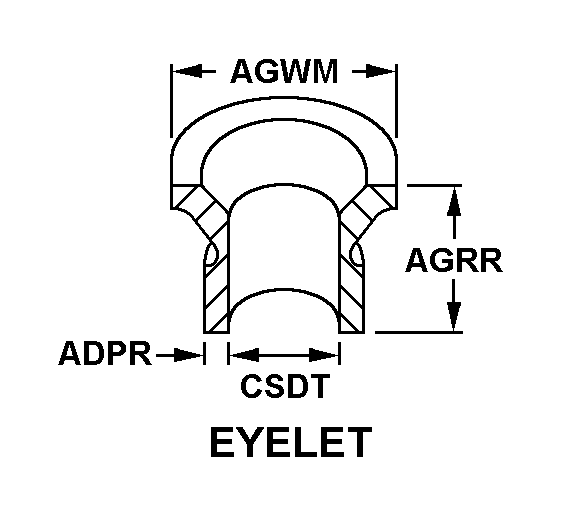

REFERENCE DRAWINGS & PICTURES
EYELET
Cross Reference | NSN 5325-00-391-0147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GSA4T188 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
Technical Data | NSN 5325-00-391-0147
| Characteristic | Specifications |
|---|---|
| TURNLOCK EYELET STYLE | EYELET |
| BODY THICKNESS | 0.025 INCHES NOMINAL |
| EYELET HEIGHT | 0.188 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 0.263 INCHES NOMINAL |
| EYELET INSIDE DIAMETER | 0.287 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NAVY SPECIAL PROJECT |
