NSN 5325-00-401-6576

Part Details | SNAP FASTENER SOCKET

5325-00-401-6576 A component of a FASTENER, SNAP; which is designed as a receptacle for a STUD, SNAP FASTENER. It may be furnished with CAP, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER.

Alternate Parts: MS279803B, MS27980-3B, 5325-00-401-6576, 00-401-6576, 5325004016576, 004016576

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53JAN 15, 197200-401-657616559 ( SOCKET, SNAP FASTENER )
REFERENCE DRAWINGS & PICTURES

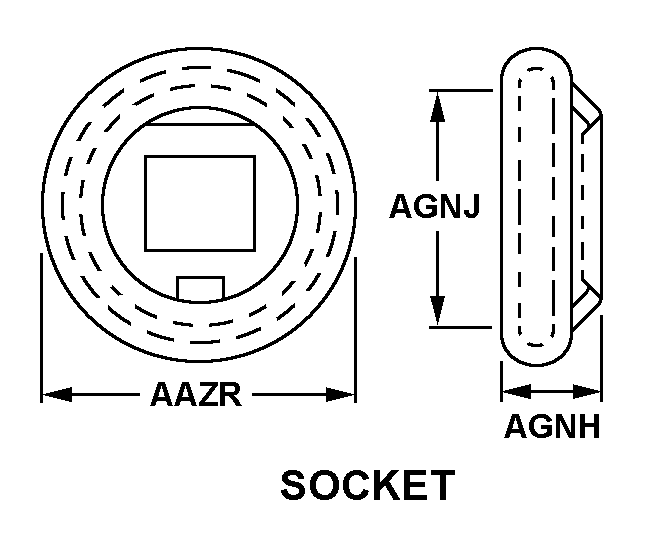

SOCKET

CAP

Cross Reference | NSN 5325-00-401-6576
Part Number Cage Code Manufacturer
MS27980-3B96906MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS
Technical Data | NSN 5325-00-401-6576
Characteristic Specifications
SNAP FASTENER SOCKET STYLE SOCKET
MAJOR DIAMETER0.562 INCHES NOMINAL
SOCKET OVERALL HEIGHT0.172 INCHES NOMINAL
OPENING DIAMETER0.438 INCHES NOMINAL
CAP STYLE CAP
CAP OVERALL LENGTH0.297 INCHES NOMINAL
CAP SHANK LENGTH0.188 INCHES NOMINAL
CAP SHANK DIAMETER0.156 INCHES NOMINAL
CAP HEAD DIAMETER0.500 INCHES NOMINAL
SPECIAL FEATURESBLACK
