NSN 5325-00-493-9928
Part Details | PUSH BUTTON FASTENER STUD
5325-00-493-9928 A metal fastening device having retractable engaging prong(s) or engaging rings actuated by a spring loaded button designed to mate with a SOCKET, PUSH BUTTON FASTENER. May include a clinch plate.
Alternate Parts: PLZ40112, PLZ401-1-2, PLZ40112, PLZ401-1-2, 5325-00-493-9928, 00-493-9928, 5325004939928, 004939928
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 27, 1974 | 00-493-9928 | 17969 ( STUD, PUSH BUTTON FASTENER ) |

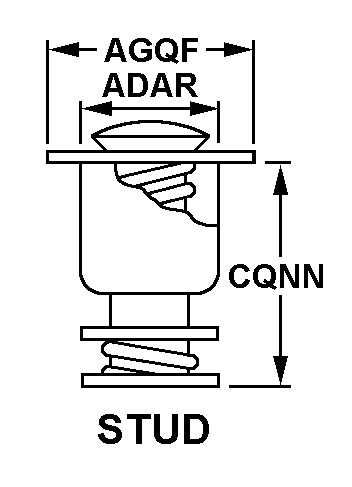

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-493-9928
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PLZ401-1-2 | 0HDW7 | HUCK INTERNATIONAL, INC.DBA ARCONIC FASTENING SYSTEMS AND |
| PLZ401-1-2 | 97928 | HUCK INTL INC |
Technical Data | NSN 5325-00-493-9928
| Characteristic | Specifications |
|---|---|
| PUSH BUTTON STUD STYLE | STUD |
| BODY OUTSIDE DIAMETER | 0.437 INCHES NOMINAL |
| BODY FLANGE OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| STUD BODY LENGTH | 0.860 INCHES NOMINAL |
