NSN 5325-00-498-0606
Part Details | SNAPSLIDE FASTENER STUD
5325-00-498-0606 An item which is used in conjunction with FASTENER, SNAPSLIDE. It secures the latch when mated with the notched rest of the latch.
Alternate Parts: 294983, 5325-00-498-0606, 00-498-0606, 5325004980606, 004980606
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 03, 1969 | 00-498-0606 | 17531 ( STUD, SNAPSLIDE FASTENER ) |

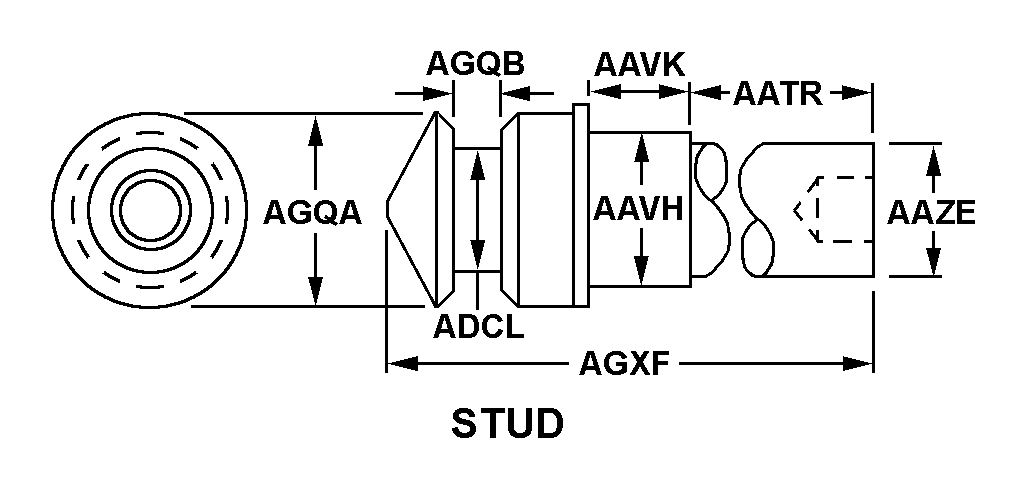

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-498-0606
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 294983 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
Technical Data | NSN 5325-00-498-0606
| Characteristic | Specifications |
|---|---|
| SNAPSLIDE STUD STYLE | STUD |
| SHANK LENGTH | 0.286 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.220 INCHES NOMINAL |
| SHOULDER LENGTH | 0.175 INCHES NOMINAL |
| SHANK DIAMETER | 0.220 INCHES NOMINAL |
| NECK DIAMETER | 0.220 INCHES NOMINAL |
| LARGEST DIAMETER | 0.560 INCHES NOMINAL |
| NECK LENGTH | 0.093 INCHES NOMINAL |
| STUD LENGTH | 0.461 INCHES NOMINAL |
