NSN 5325-00-576-5374
Part Details | NONMETALLIC GROMMET
5325-00-576-5374 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Alternate Parts: 5081, 508-1, 5080001, 508-0001, 5080001, 508-0001, 1290673, 5325-00-576-5374, 00-576-5374, 5325005765374, 005765374
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-576-5374 | 33729 ( GROMMET, NONMETALLIC ) |

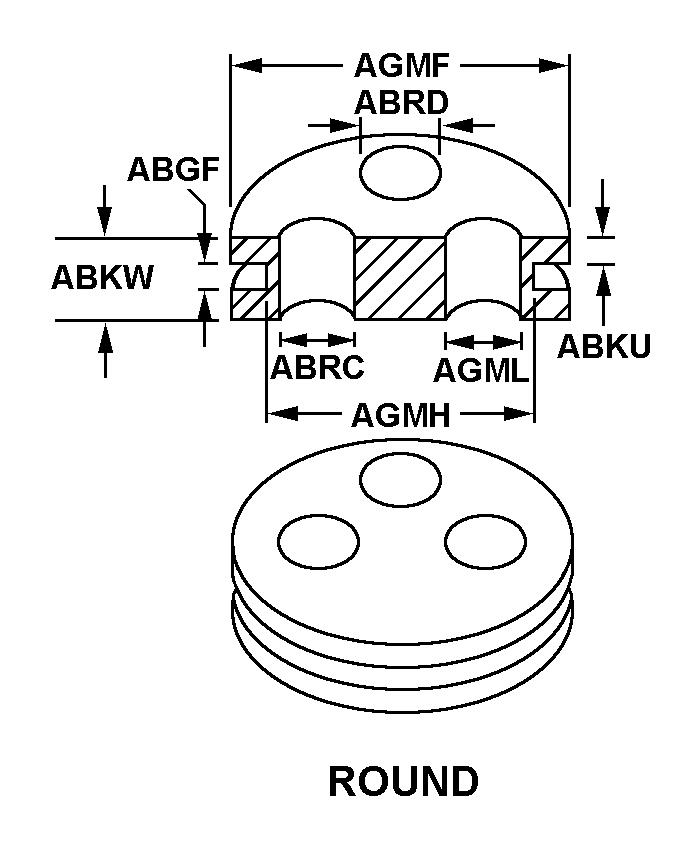

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5325-00-576-5374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 508-1 | 44940 | CUMMINS POWER GENERATION INC. |
| 508-0001 | 44940 | CUMMINS POWER GENERATION INC. |
| 508-0001 | 1FP59 | IKON SYSTEMS INC |
| 1290673 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5325-00-576-5374
| Characteristic | Specifications |
|---|---|
| GROMMET STYLE | ROUND |
| GROOVE WIDTH | 0.094 INCHES NOMINAL |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.344 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.750 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.750 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 1.281 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 1.062 INCHES NOMINAL |
| THIRD HOLE DIAMETER | 0.750 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
