NSN 5325-00-639-7168
Part Details | PUSH BUTTON FASTENER STUD
5325-00-639-7168 A metal fastening device having retractable engaging prong(s) or engaging rings actuated by a spring loaded button designed to mate with a SOCKET, PUSH BUTTON FASTENER. May include a clinch plate.
Alternate Parts: 63350, 5325-00-639-7168, 00-639-7168, 5325006397168, 006397168
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-639-7168 | 17969 ( STUD, PUSH BUTTON FASTENER ) |

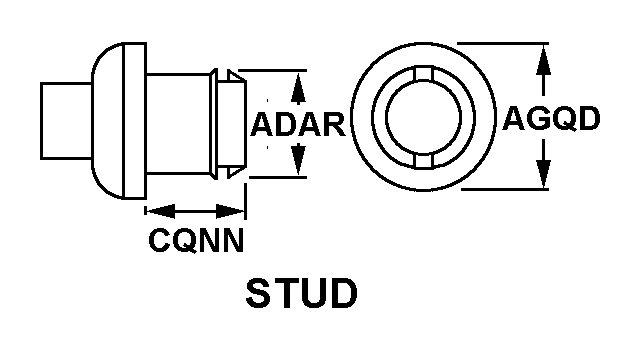

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-639-7168
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63350 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-639-7168
| Characteristic | Specifications |
|---|---|
| PUSH BUTTON STUD STYLE | STUD |
| BODY OUTSIDE DIAMETER | 0.359 INCHES NOMINAL |
| BASE OUTSIDE DIAMETER | 0.797 INCHES NOMINAL |
| STUD BODY LENGTH | 0.344 INCHES NOMINAL |
| SPECIAL FEATURES | SOLID SHANK |
