NSN 5325-00-763-5758
Part Details | SNAP FASTENER STUD
5325-00-763-5758 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: AN22751, AN227-51, 1280066008, 128-0066-008, MS279824N, MS27982-4N, 31232551, 312325-51, B590307, 5325-00-763-5758, 00-763-5758, 5325007635758, 007635758
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1960 | 00-763-5758 | 16550 ( STUD, SNAP FASTENER ) |

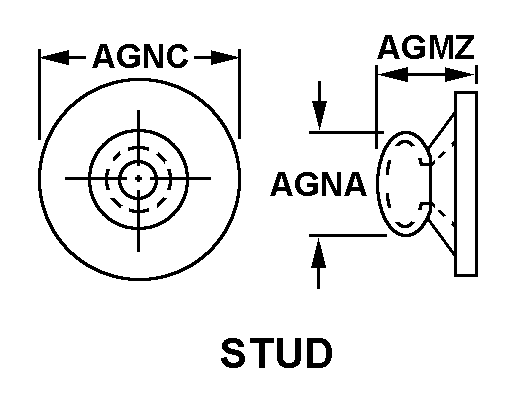

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-763-5758
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-51 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 128-0066-008 | 94756 | BOEING COMPANY, THEDBA BOEING |
| MS27982-4N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 312325-51 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| B590307 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-763-5758
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| STUD OVERALL LENGTH | 0.093 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.468 INCHES NOMINAL |
| STUD RETENTION METHOD | CLINCH |
