NSN 5330-00-018-4633
Part Details | SPIRAL WOUND GASKET
5330-00-018-4633 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Alternate Parts: 555BM, 5330-00-018-4633, 00-018-4633, 5330000184633, 000184633
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 25, 1967 | 00-018-4633 | 37840 ( GASKET, SPIRAL WOUND ) |

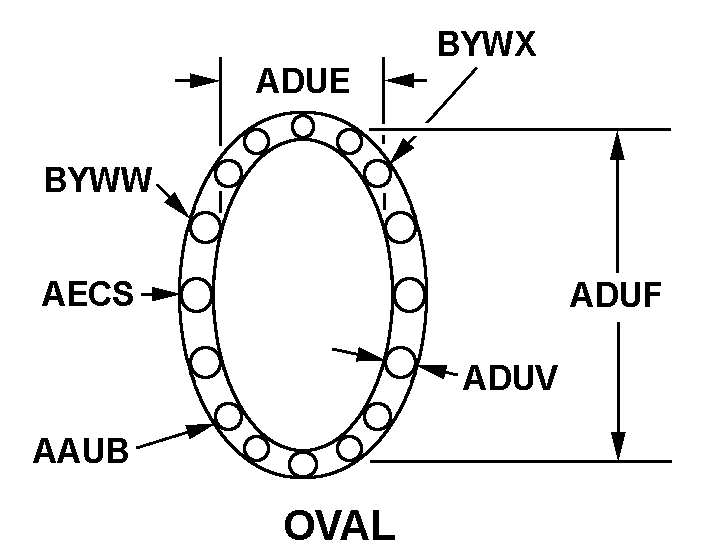

REFERENCE DRAWINGS & PICTURES
METAL AND NONMETALLIC MATERIALS
OVAL
Cross Reference | NSN 5330-00-018-4633
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 555BM | 73680 | GARLOCK SEALING TECHNOLOGIES LLCDBA GARLOCK SEALING TECHNOLOGIES |
Technical Data | NSN 5330-00-018-4633
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 6 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL THICKNESS | 0.175 INCHES NOMINAL |
| STYLE DESIGNATOR | OVAL |
| APERTURE WIDTH | 16.938 INCHES NOMINAL |
| APERTURE LENGTH | 20.438 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 0.938 INCHES NOMINAL |
