NSN 5330-00-024-8052
Part Details | SEAL RETAINER
5330-00-024-8052 An item of various shapes and cross sections, usually flanged and designed to fit over a rod, shaft, or the like, for the purpose of encasing and posititioning a SEAL, PLAIN ENCASED or a SEAL, PLAIN. The flange is usually drilled for stud or bolt mounting. Item does not include the seal. Excludes RETAINER, PACKING.
Alternate Parts: 733742PC1, 5330-00-024-8052, 00-024-8052, 5330000248052, 000248052
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-024-8052 | 50336 ( RETAINER, SEAL ) |
REFERENCE DRAWINGS & PICTURES

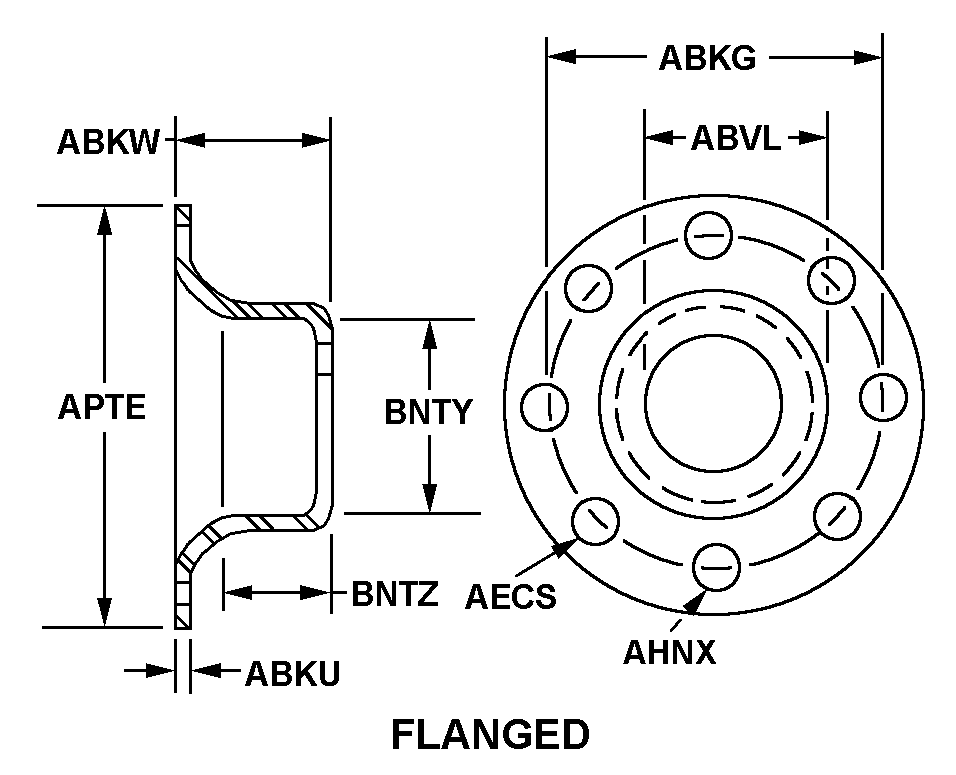

FLANGED
Cross Reference | NSN 5330-00-024-8052
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 733742PC1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5330-00-024-8052
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | ONE-PIECE |
| STYLE DESIGNATOR | FLANGED |
| BOLT CIRCLE DIAMETER | 3.750 INCHES NOMINAL |
| FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| APERTURE DIAMETER | 2.375 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.344 INCHES NOMINAL |
| MOUNTING FLANGE DIAMETER | 4.375 INCHES NOMINAL |
| SEAL SEAT DIAMETER | 3.248 INCHES NOMINAL |
| SEAL SEAT DEPTH | 0.687 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
