NSN 5330-00-099-8531
Part Details | PLAIN ENCASED SEAL
5330-00-099-8531 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Alternate Parts: 9773121, 977312-1, 5330-00-099-8531, 00-099-8531, 5330000998531, 000998531
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 08, 1972 | 00-099-8531 | 04214 ( SEAL, PLAIN ENCASED ) |
REFERENCE DRAWINGS & PICTURES
SQUARE

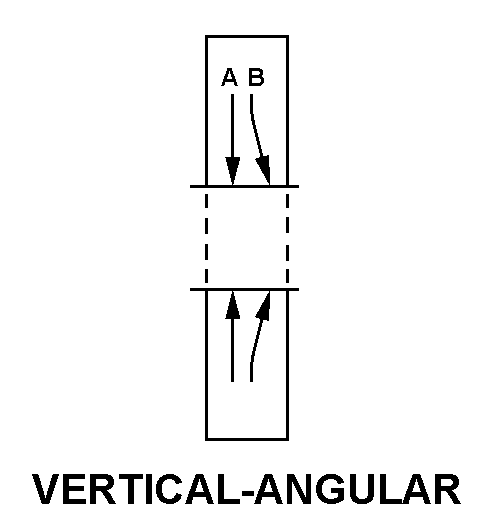

VERTICAL-ANGULAR
Cross Reference | NSN 5330-00-099-8531
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 977312-1 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5330-00-099-8531
| Characteristic | Specifications |
|---|---|
| CASE STYLE | SQUARE |
| SEALING ELEMENT STYLE | VERTICAL-ANGULAR |
| SEAL WIDTH | 0.296 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| ACCOMMODATED SHAFT MAXIMUM RATED SPEED | 679 FEET PER MINUTE |
| ACCOMMODATED SHAFT DIAMETER | 0.625 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 1.126 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT |
