NSN 5330-00-102-0183
Part Details | WIPER RING
5330-00-102-0183 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Alternate Parts: 9150056500, 9150-05-6500, 9150056500, 9150-05-6500, 5330-00-102-0183, 00-102-0183, 5330001020183, 001020183
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 13, 1972 | 00-102-0183 | 20256 ( RING, WIPER ) |
REFERENCE DRAWINGS & PICTURES

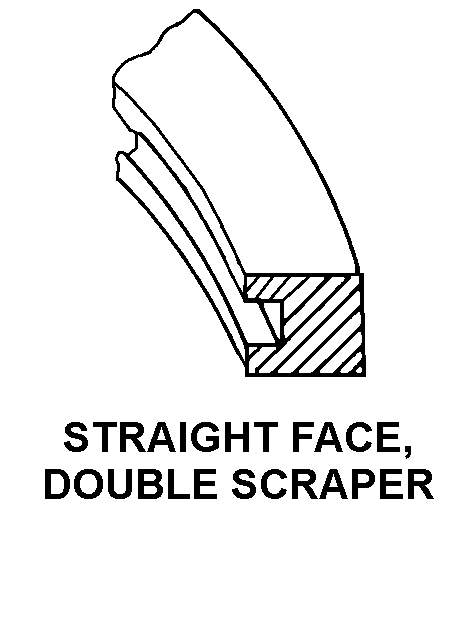

STRAIGHT FACE, DOUBLE SCRAPER
CONCENTRIC
DIAGONAL JOINT
Cross Reference | NSN 5330-00-102-0183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9150-05-6500 | 88773 | GEORGE W. DAHL INC. |
| 9150-05-6500 | 90005 | PUROLATOR FACET, INC. |
Technical Data | NSN 5330-00-102-0183
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | STRAIGHT FACE, DOUBLE SCRAPER |
| JOINT STYLE | DIAGONAL JOINT |
| RING STYLE | CONCENTRIC |
| INSIDE DIAMETER | 1.373 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.688 INCHES MINIMUM AND 1.691 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.087 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| OUTER EDGE THICKNESS | 0.087 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
