NSN 5330-00-102-9927
Part Details | NONMETALLIC ROUND SECTION SEAL
5330-00-102-9927 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items with a solid cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to specific shape with or without joints. It may be a straight item of a specific length with end cuts or joints. It may have a solid or tubular cross section. Except for molded corners, end cuts, and mounting facilities such as mounting holes, slots, press-fit buttons, or the like, the item must be of one continuous round cross section. It may have fabric, cord or metal reinforcement. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER ROUND SECTION and TUBING, NONMETALLIC. Excludes GASKET and PACKING, PREFORMED.
Alternate Parts: 11619289, 5330-00-102-9927, 00-102-9927, 5330001029927, 001029927
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 05, 1968 | 00-102-9927 | 36873 ( SEAL, NONMETALLIC ROUND SECTION ) |

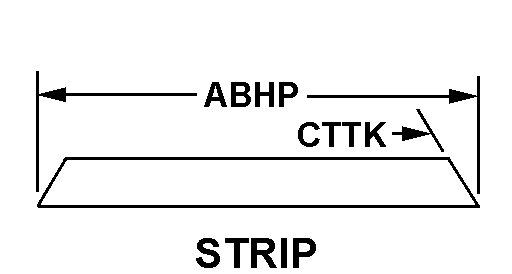

REFERENCE DRAWINGS & PICTURES
TRIANGLE
STRIP
Cross Reference | NSN 5330-00-102-9927
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11619289 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-00-102-9927
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | 3 TRIANGLE |
| CROSS SECTION INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 1.240 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | STRIP |
| OVERALL LENGTH | 23.890 INCHES NOMINAL |
| END CUT ANGLE | 27.0 DEGREES |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 7 |
| ATTACHMENT HOLE DIAMETER | 0.280 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
