NSN 5330-00-104-2209
Part Details | WIPER RING
5330-00-104-2209 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Alternate Parts: RA207013, RA20701-3, L25134AND7580, L2513-4AND7580, 5330-00-104-2209, 00-104-2209, 5330001042209, 001042209
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 17, 1968 | 00-104-2209 | 20256 ( RING, WIPER ) |
REFERENCE DRAWINGS & PICTURES

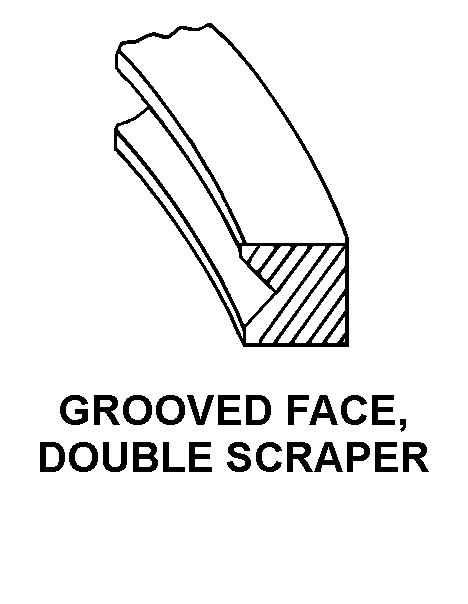

GROOVED FACE, DOUBLE SCRAPER
CONCENTRIC
Cross Reference | NSN 5330-00-104-2209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RA20701-3 | 46717 | PETTIBONE LLC |
| L2513-4AND7580 | 81168 | STROHMEYER JULIE A.DBA JULIE A. STROHMEYER |
Technical Data | NSN 5330-00-104-2209
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED FACE, DOUBLE SCRAPER |
| RING STYLE | CONCENTRIC |
| INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.350 INCHES NOMINAL |
| OUTER EDGE THICKNESS | 0.188 INCHES NOMINAL |
