NSN 5330-00-104-5717
Part Details | WIPER RING
5330-00-104-5717 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Alternate Parts: A303, A303, WMP225, WMP2-25, 5330-00-104-5717, 00-104-5717, 5330001045717, 001045717
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 19, 1968 | 00-104-5717 | 20256 ( RING, WIPER ) |
REFERENCE DRAWINGS & PICTURES

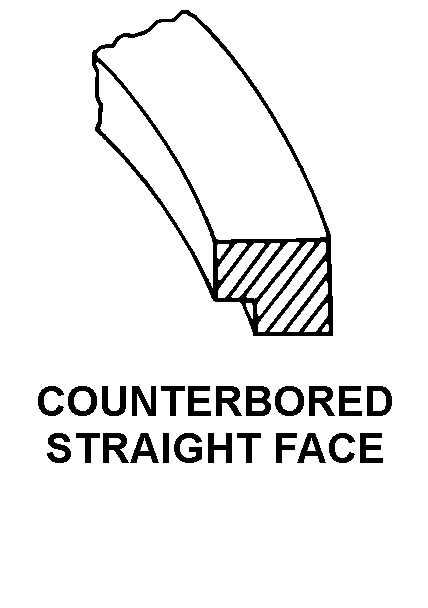

COUNTERBORED STRAIGHT FACE
CONCENTRIC
Cross Reference | NSN 5330-00-104-5717
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A303 | 04162 | HI-RANGER MIDWEST |
| A303 | 95953 | HYCO INC |
| WMP2-25 | 46717 | PETTIBONE LLC |
Technical Data | NSN 5330-00-104-5717
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | COUNTERBORED STRAIGHT FACE |
| RING STYLE | CONCENTRIC |
| INSIDE DIAMETER | 2.545 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.875 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.350 INCHES NOMINAL |
| OUTER EDGE THICKNESS | 0.190 INCHES NOMINAL |
