NSN 5330-00-106-6314
Part Details | PLAIN SEAL
5330-00-106-6314 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: 110303, 325940, 5330-00-106-6314, 00-106-6314, 5330001066314, 001066314
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 17, 1968 | 00-106-6314 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

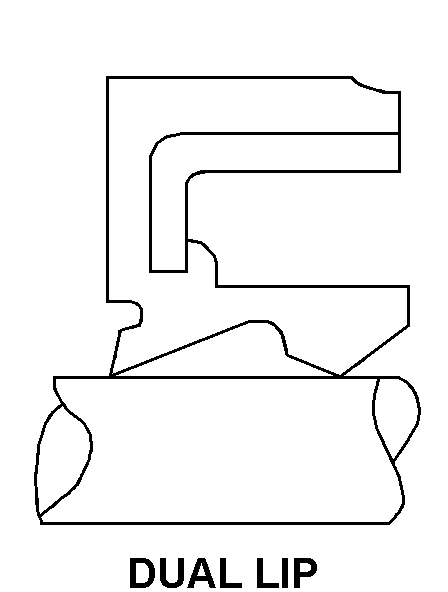

DUAL LIP
Cross Reference | NSN 5330-00-106-6314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110303 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 325940 | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
Technical Data | NSN 5330-00-106-6314
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | DUAL LIP |
| SEAL WIDTH | 0.562 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 12.750 INCHES NOMINAL |
