NSN 5330-00-110-8744
Part Details | GASKET
5330-00-110-8744 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 40251068, 4025106-8, 4025106, 5330-00-110-8744, 00-110-8744, 5330001108744, 001108744
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 12, 1968 | 00-110-8744 | 04522 ( GASKET ) |

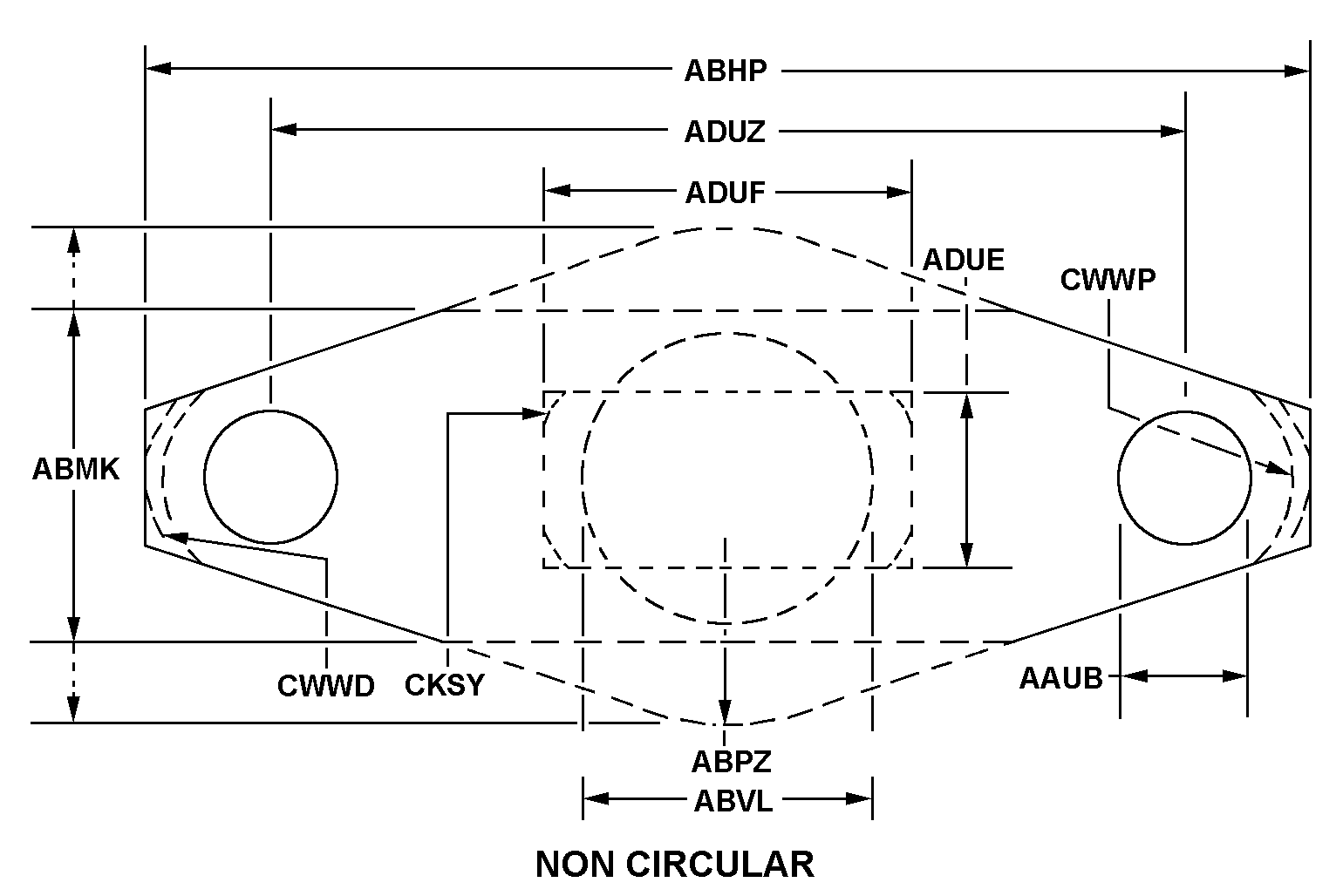

REFERENCE DRAWINGS & PICTURES
METAL
NON-CIRCULAR
Cross Reference | NSN 5330-00-110-8744
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4025106-8 | 6N299 | AGCO CORPPARTS OPN |
| 4025106 | 6N299 | AGCO CORPPARTS OPN |
Technical Data | NSN 5330-00-110-8744
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.406 INCHES |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.594 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.375 INCHES NOMINAL |
| APERTURE WIDTH | 0.938 INCHES NOMINAL |
| APERTURE LENGTH | 2.562 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 4.000 INCHES |
