NSN 5330-00-111-3795
Part Details | PLAIN SEAL
5330-00-111-3795 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: 00150, 240733, 240733, 10505804, 73498, 71037, 073498, M054071037, M0540-71037, 73498, 71037, 5330-00-111-3795, 00-111-3795, 5330001113795, 001113795
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 16, 1968 | 00-111-3795 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

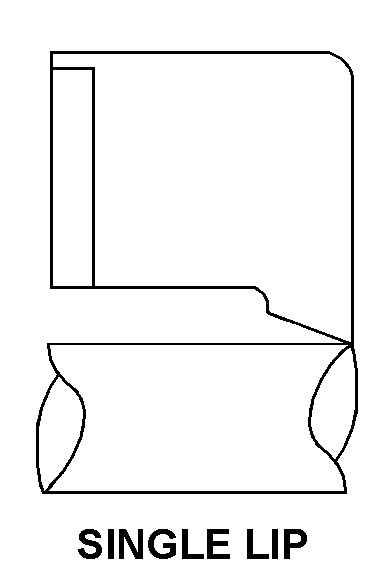

SINGLE LIP
Cross Reference | NSN 5330-00-111-3795
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00150 | 14153 | DEFENSE LOGISTICS AGENCYDBA DEFENSE SUPPLY CENTER |
| 240733 | 76680 | FEDERAL-MOGUL CORPCHASSIS PRODUCTS DIV |
| 240733 | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
| 10505804 | 56161 | GENERAL DYNAMICS LAND SYSTEMS -CANADA CORP |
| 73498 | 35510 | PRESTOLITE ELECTRIC INC |
| 71037 | 35510 | PRESTOLITE ELECTRIC INC |
| 073498 | 35510 | PRESTOLITE ELECTRIC INC |
| M0540-71037 | 35510 | PRESTOLITE ELECTRIC INC |
| 73498 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
| 71037 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
Technical Data | NSN 5330-00-111-3795
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | SINGLE LIP |
| SEAL WIDTH | 0.125 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 0.875 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 1.135 INCHES NOMINAL |
