NSN 5330-00-118-1275
Part Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-00-118-1275 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Alternate Parts: 305704, 305704, 5330-00-118-1275, 00-118-1275, 5330001181275, 001181275
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 09, 1968 | 00-118-1275 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
REFERENCE DRAWINGS & PICTURES

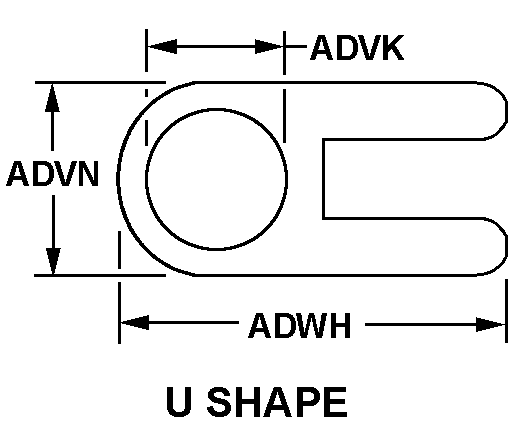

U SHAPE
CIRCULAR
Cross Reference | NSN 5330-00-118-1275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 305704 | 1UVT5 | BRP US INC.DBA BOMBARDIER MOTOR CORP OF AMERICA |
| 305704 | 21119 | EVINRUDE MOTORSPRODUCT GROUP OF OUTBOARD MARINE |
Technical Data | NSN 5330-00-118-1275
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SPLIT |
| CROSS-SECTIONAL SHAPE STYLE | U SHAPE |
| CROSS SECTION INSIDE DIAMETER | 0.188 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.250 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.500 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | 5 CIRCULAR |
| OVERALL LENGTH | 35.500 INCHES NOMINAL |
