NSN 5330-00-118-4991
Part Details | GASKET
5330-00-118-4991 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 8M2331, 8132331, 5330-00-118-4991, 00-118-4991, 5330001184991, 001184991
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 11, 1968 | 00-118-4991 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

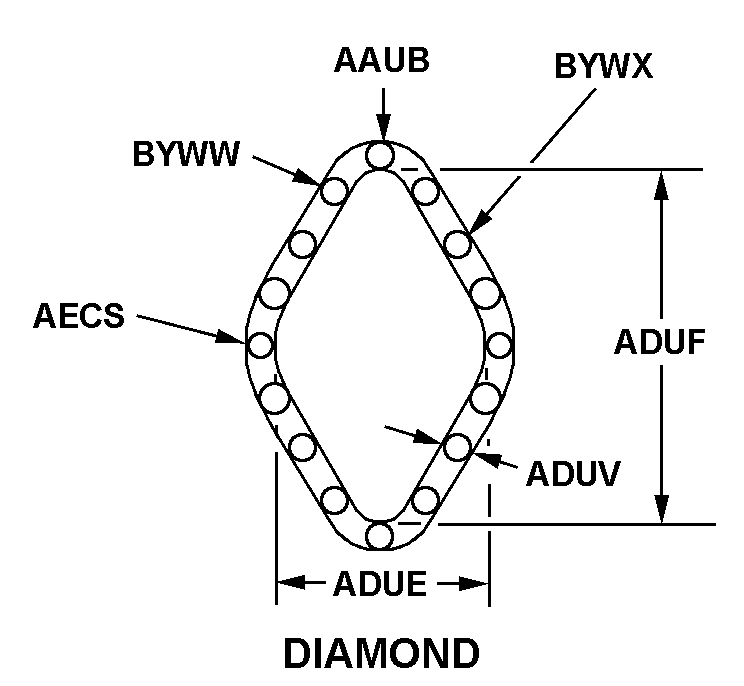

DIAMOND
Cross Reference | NSN 5330-00-118-4991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8M2331 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 8132331 | 57217 | STRIEGEL SUPPLY INC |
Technical Data | NSN 5330-00-118-4991
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.034 INCHES NOMINAL |
| STYLE DESIGNATOR | DIAMOND |
| APERTURE WIDTH | 2.312 INCHES NOMINAL |
| APERTURE LENGTH | 2.625 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 0.312 INCHES NOMINAL |
| SPECIAL FEATURES | TWO BOLT HOLES 0.406 INCH DIA SPACED 3.375 INCH C TO C ON LENGTH |
