NSN 5330-00-123-6589
Part Details | NONMETALLIC STRIP SEAL
5330-00-123-6589 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Alternate Parts: 3291508, 5330-00-123-6589, 00-123-6589, 5330001236589, 001236589
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 11, 1975 | 00-123-6589 | 36874 ( SEAL, NONMETALLIC STRIP ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

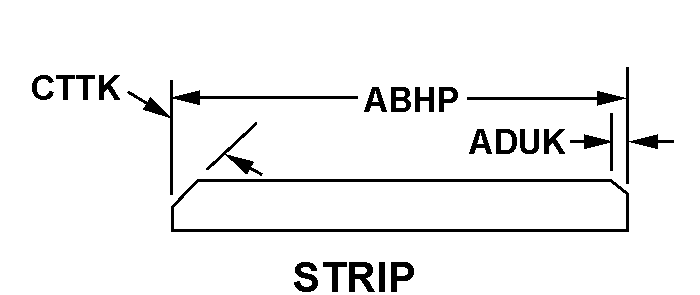

STRIP
Cross Reference | NSN 5330-00-123-6589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3291508 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5330-00-123-6589
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.520 INCHES MINIMUM |
| CROSS-SECTIONAL WIDTH | 0.120 INCHES MINIMUM |
| FABRICATION METHOD | CELLULAR, UNEXPLODED |
| STYLE DESIGNATOR | STRIP |
| OVERALL LENGTH | 6.430 INCHES NOMINAL |
| END CUT LENGTH | 0.100 INCHES NOMINAL |
| END CUT ANGLE | 45.0 DEGREES |
| ATTACHMENT METHOD | INTEGRAL PRESS FIT BUTTONS |
| ATTACHMENT FEATURE QUANTITY | 3 |
| ATTACHMENT HOLE DIAMETER | 0.320 INCHES MINIMUM |
| ATTACHMENT FEATURE LENGTH | 1.889 INCHES NOMINAL |
| ATTACHMENT FEATURE WIDTH | 0.300 INCHES NOMINAL |
