NSN 5330-00-124-9159
Part Details | PLAIN SEAL
5330-00-124-9159 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: 6L7813, 5330-00-124-9159, 00-124-9159, 5330001249159, 001249159
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-9159 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

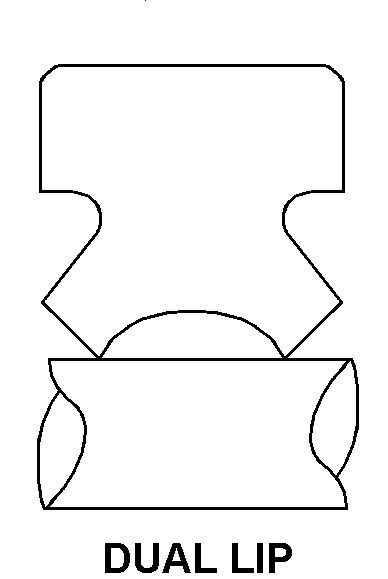

DUAL LIP
Cross Reference | NSN 5330-00-124-9159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6L7813 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 5330-00-124-9159
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | DUAL LIP |
| SEAL WIDTH | 0.344 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 0.922 INCHES MINIMUM AND 0.984 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | BOTH ENDS OF SEAL TO BE CHAMFERED 0.020 IN. BY 45 DEGREES |
