NSN 5330-00-133-8365
Part Details | PLAIN SEAL
5330-00-133-8365 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: 685252, 68-525-2, 685252, 68-525-2, 5330-00-133-8365, 00-133-8365, 5330001338365, 001338365
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 02, 1968 | 00-133-8365 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

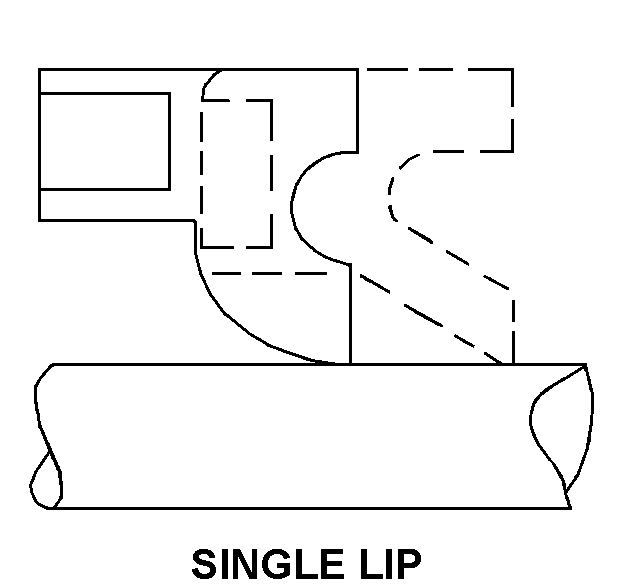

SINGLE LIP
Cross Reference | NSN 5330-00-133-8365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68-525-2 | 25472 | GOODRICH CORPORATION |
| 68-525-2 | 97153 | GOODRICH CORPORATIONDBA GOODRICH AEROSPACE |
Technical Data | NSN 5330-00-133-8365
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | SINGLE LIP |
| SEAL WIDTH | 0.290 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 5.625 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 6.780 INCHES NOMINAL |
| FSC APPLICATION DATA | WHEEL,LANDING GEAR |
