NSN 5330-00-136-8883
Part Details | PLAIN SEAL
5330-00-136-8883 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Alternate Parts: 3155002, 5330-00-136-8883, 00-136-8883, 5330001368883, 001368883
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 22, 1969 | 00-136-8883 | 04250 ( SEAL, PLAIN ) |
REFERENCE DRAWINGS & PICTURES

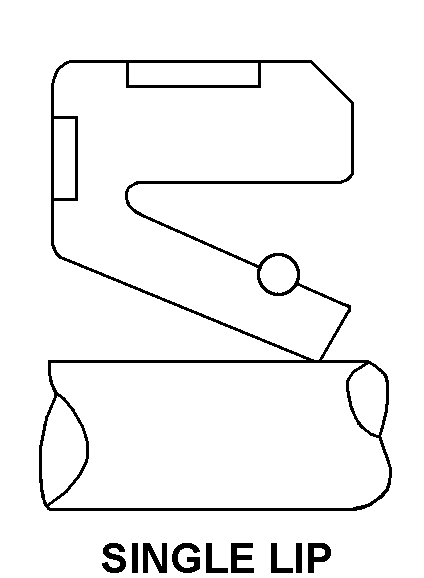

SINGLE LIP
Cross Reference | NSN 5330-00-136-8883
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3155002 | 34623 | AM GENERAL LLC |
Technical Data | NSN 5330-00-136-8883
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | SINGLE LIP |
| SEAL WIDTH | 0.375 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 1.750 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 2.250 INCHES NOMINAL |
