NSN 5330-00-140-9602
Part Details | GASKET
5330-00-140-9602 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 5330001409602, 5330001409602, CPR103797, 5330-00-140-9602, 00-140-9602, 5330001409602, 001409602
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 16, 1973 | 00-140-9602 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

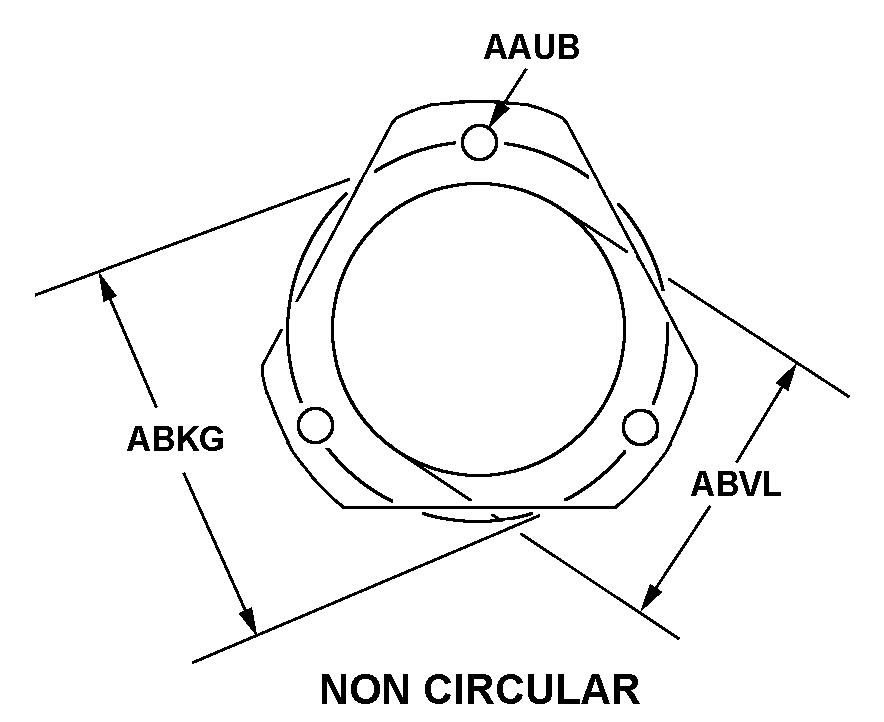

NON-CIRCULAR
Cross Reference | NSN 5330-00-140-9602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5330001409602 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 5330001409602 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| CPR103797 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-00-140-9602
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.650 INCHES |
| BOLT CIRCLE DIAMETER | 0.560 INCHES NOMINAL |
| APERTURE DIAMETER | 3.560 INCHES NOMINAL |
