NSN 5330-00-141-4115
Part Details | PACKING MATERIAL
5330-00-141-4115 Any material specifically designed and constructed to resist deterioration from the action of heat, gas, chemicals or liquids and used to create a tight seal. It is supplied in loose form or in coils, spirals, spools or cut lengths, usually having a square or round cross section. For rubber items having a round cross section, see RUBBER ROUND SECTION. Excludes ROPE, ASBESTOS; CALKING COTTON; and CALKING LEAD. See also PACKING, PREFORMED; and OAKUM.
Alternate Parts: PHD604N1, HD604N1, 5330-00-141-4115, 00-141-4115, 5330001414115, 001414115
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-141-4115 | 04531 ( PACKING MATERIAL ) |
REFERENCE DRAWINGS & PICTURES

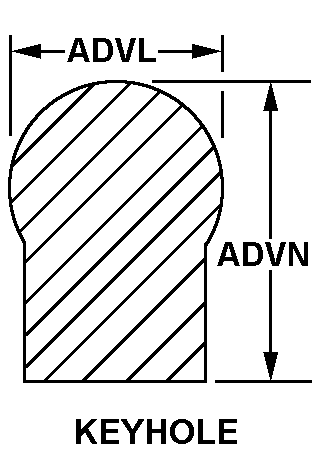

KEYHOLE
Cross Reference | NSN 5330-00-141-4115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PHD604N1 | 71025 | BRIDGEPORT FABRICATORS INC |
| HD604N1 | 71025 | BRIDGEPORT FABRICATORS INC |
Technical Data | NSN 5330-00-141-4115
| Characteristic | Specifications |
|---|---|
| FABRICATION METHOD | SOLID AND SOLID |
| MATERIAL | PAPER AND SPONGE AND RUBBER SYNTHETIC |
| CROSS-SECTIONAL SHAPE STYLE | KEYHOLE |
| CROSS SECTION OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 1.375 INCHES NOMINAL |
| LENGTH | 72.000 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY LENGTH |
