NSN 5330-00-151-4360
Part Details | NONMETALLIC CHANNEL SEAL
5330-00-151-4360 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Alternate Parts: 11660447, 5330-00-151-4360, 00-151-4360, 5330001514360, 001514360
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 02, 1970 | 00-151-4360 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES
OPEN CHANNEL

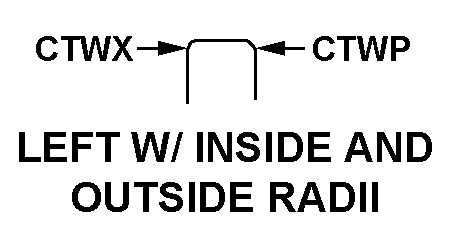

LEFT W/ INSIDE AND OUTSIDE RADII

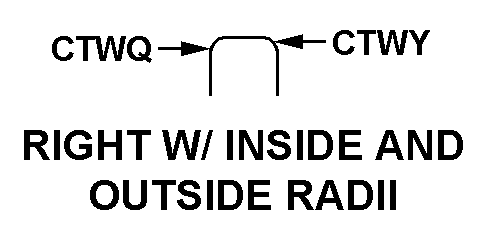

RIGHT W/ INSIDE AND OUTSIDE RADII
CIRCULAR
Cross Reference | NSN 5330-00-151-4360
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11660447 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-00-151-4360
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| WEB WIDTH | 1.370 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.040 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.650 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.440 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| RIGHT SIDE FLANGE THICKNESS | 0.380 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| WEB THICKNESS | 0.200 INCHES NOMINAL |
| LEFT FLANGE OUTER RADIUS AT WEB | 0.200 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| LEFT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| STYLE DESIGNATOR | 5 CIRCULAR |
| OVERALL LENGTH | 59.620 INCHES NOMINAL |
| LEFT TIP STYLE | LEFT W/ INSIDE AND OUTSIDE RADII |
| LEFT TIP OUTER RADIUS | 0.200 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |
| RIGHT TIP STYLE | RIGHT W/ INSIDE AND OUTSIDE RADII |
