NSN 5330-00-153-8512
Part Details | GASKET
5330-00-153-8512 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 2846730, 6886257, 2846730, 5330-00-153-8512, 00-153-8512, 5330001538512, 001538512
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 23, 1973 | 00-153-8512 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

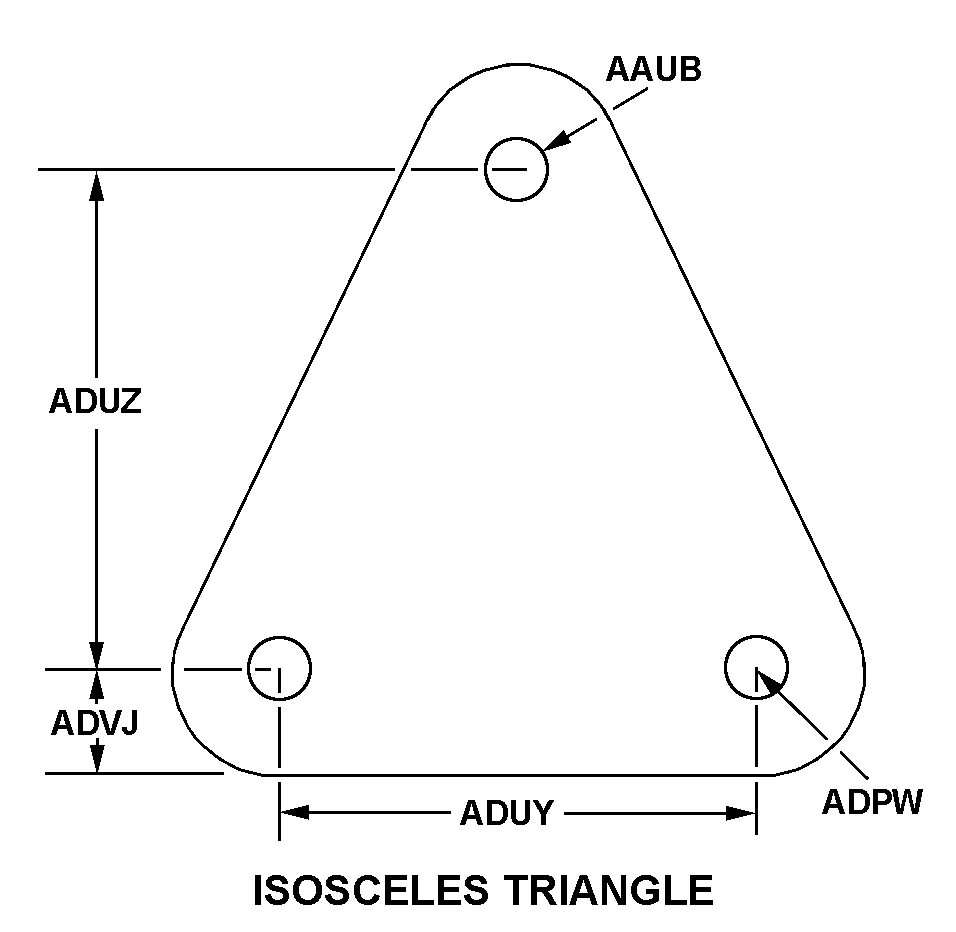

ISOSCELES TRIANGLE
Cross Reference | NSN 5330-00-153-8512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2846730 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 6886257 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2846730 | 27986 | UNIQUE ENGINEERING INC |
Technical Data | NSN 5330-00-153-8512
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.328 INCHES NOMINAL |
| STYLE DESIGNATOR | ISOSCELES TRIANGLE |
| HOLE DIAMETER | 0.562 INCHES |
| OVERALL LENGTH | 6.365 INCHES NOMINAL |
| OVERALL WIDTH | 2.927 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.620 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 5.125 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.687 INCHES |
