NSN 5340-00-113-9606
Part Details | DOUBLE ANGLE BRACKET
5340-00-113-9606 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.
Alternate Parts: 10911318, 5340-00-113-9606, 00-113-9606, 5340001139606, 001139606
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 09, 1968 | 00-113-9606 | 20354 ( BRACKET, DOUBLE ANGLE ) |
REFERENCE DRAWINGS & PICTURES
SQUARE

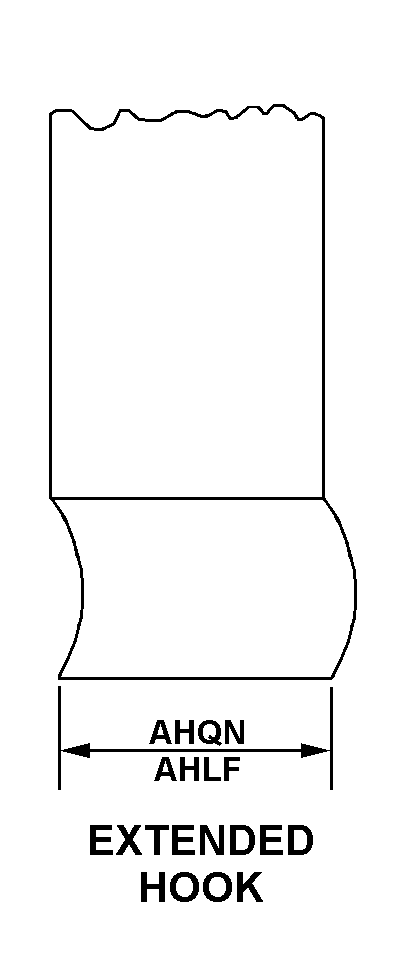

EXTENDED HOOK
SQUARE
EXTENDED HOOK
DOUBLE ANGLE
Cross Reference | NSN 5340-00-113-9606
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10911318 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-113-9606
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ANGLE |
| FIRST LEG LENGTH | 2.880 INCHES NOMINAL |
| SECOND LEG LENGTH | 9.630 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.250 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.250 INCHES NOMINAL |
| CENTER SECTION HEIGHT | 3.000 INCHES NOMINAL |
| CENTER SECTION WIDTH | 2.500 INCHES NOMINAL |
| CENTER SECTION THICKNESS | 0.250 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | SQUARE |
| FIRST LEG WIDTH | 4.250 INCHES NOMINAL |
| SECOND LEG WIDTH | 2.500 INCHES NOMINAL |
| SECOND LEG STYLE | EXTENDED HOOK |
| SPECIAL FEATURES | TWO SLOTS LOCATED IN FIRST AND SECOND LEGS |
