NSN 5340-00-117-9916
Part Details | NUT AND BOLT RETAINER
5340-00-117-9916 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Alternate Parts: CV214105034, CV21-410503-4, 5340-00-117-9916, 00-117-9916, 5340001179916, 001179916
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 07, 1968 | 00-117-9916 | 16010 ( RETAINER, NUT AND BOLT ) |
REFERENCE DRAWINGS & PICTURES

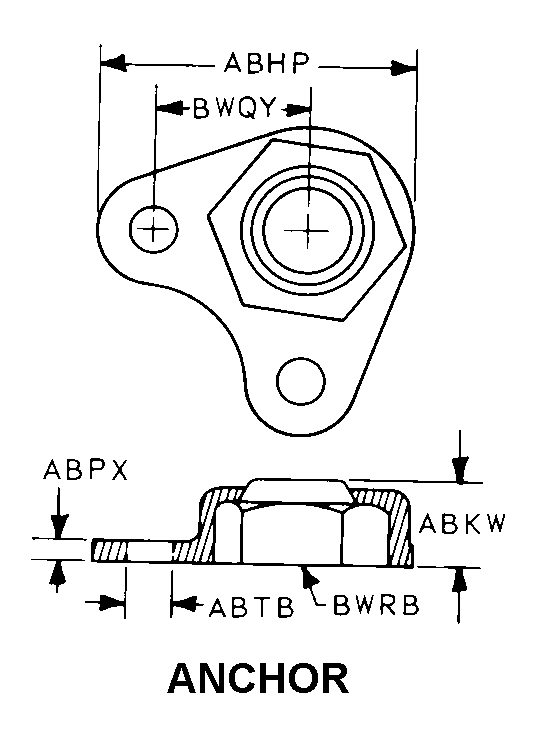

ANCHOR
Cross Reference | NSN 5340-00-117-9916
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CV21-410503-4 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 5340-00-117-9916
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANCHOR |
| MATERIAL | STEEL |
| OVERALL HEIGHT | 0.120 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.313 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE | 0.910 INCHES NOMINAL |
