NSN 5340-00-118-0617
Part Details | SNAP HOOK
5340-00-118-0617 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: 922034, SWE820311, SWE82031-1, 5340-00-118-0617, 00-118-0617, 5340001180617, 001180617
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 07, 1968 | 00-118-0617 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES
ROUND EYE

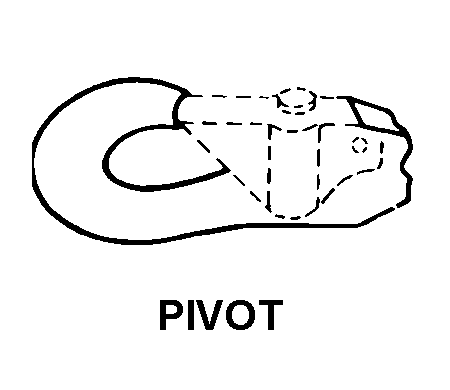

PIVOT
Cross Reference | NSN 5340-00-118-0617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 922034 | 87641 | HYDRATIGHT OPERATIONS, INC. |
| SWE82031-1 | 87641 | HYDRATIGHT OPERATIONS, INC. |
Technical Data | NSN 5340-00-118-0617
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | PIVOT |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END IN SAME PLANE AS HOOK END |
| END CONNECTION STYLE | ROUND EYE |
| INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| HOOK MATERIAL | STEEL |
| CONNECTION END MATERIAL | STEEL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
