NSN 5340-00-123-3372
Part Details | NUT AND BOLT RETAINER
5340-00-123-3372 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Alternate Parts: 176410, 5340-00-123-3372, 00-123-3372, 5340001233372, 001233372
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-123-3372 | 16010 ( RETAINER, NUT AND BOLT ) |

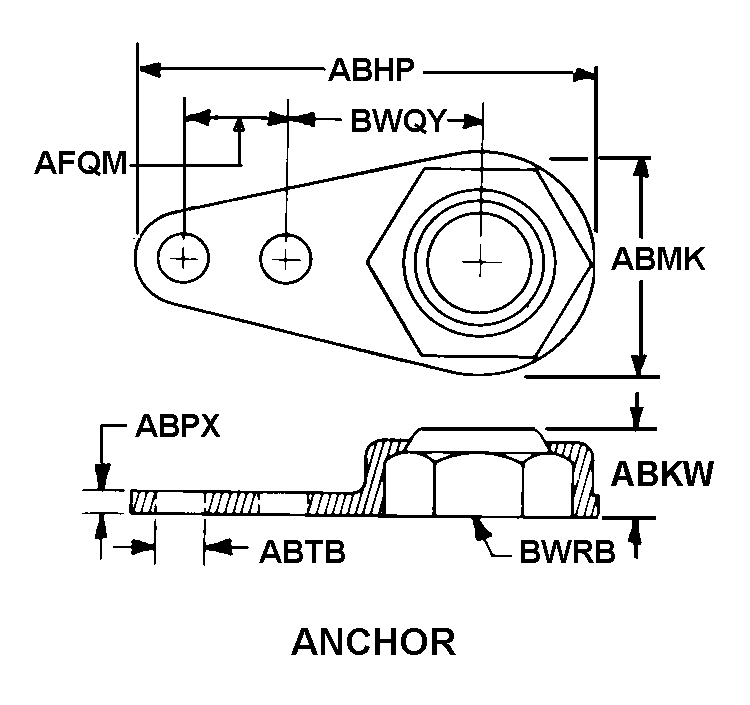

REFERENCE DRAWINGS & PICTURES
ANCHOR
Cross Reference | NSN 5340-00-123-3372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 176410 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5340-00-123-3372
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANCHOR |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.193 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE | 0.750 INCHES NOMINAL |
| WIDTH BETWEEN CUP FLATS | 0.650 INCHES NOMINAL |
