NSN 5340-00-123-8969
Part Details | WEBBING STRAP
5340-00-123-8969 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 716274, 5340-00-123-8969, 00-123-8969, 5340001238969, 001238969
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 22, 1974 | 00-123-8969 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT ROUND TYPE
FLANGE

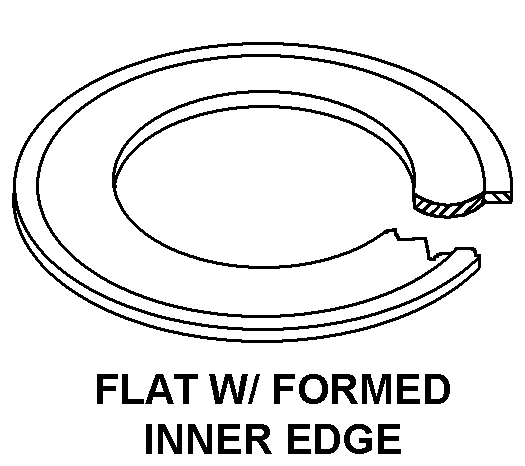

FLAT W/FORMED INNER EDGE
Cross Reference | NSN 5340-00-123-8969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 716274 | 18894 | AIR ARMAMENT CENTER/ EN |
Technical Data | NSN 5340-00-123-8969
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE ADIPAMIDE |
| WIDTH | 1.500 INCHES NOMINAL |
| LENGTH | 18.000 INCHES NOMINAL |
| END TYPE | BOTH FOLDED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-5038, TYPE 4 MIL SPEC SINGLE MATERIAL RESPONSE |
| COLOR | NATURAL |
| FOLD TYPE | TIGHT |
| ATTACHMENT METHOD FOR WHICH DESIGNED | GROMMET |
| END ATTACHMENT/FASTENING FACILITY | R ANY ACCEPTABLE |
| GROMMET QUANTITY | 2 |
| GROMMET BARREL STYLE DESIGNATOR | STRAIGHT ROUND TYPE |
| GROMMET FLANGE STYLE DESIGNATOR | FLANGE |
| GROMMET WASHER STYLE DESIGNATOR | FLAT W/FORMED INNER EDGE |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.750 INCHES NOMINAL |
| DISTANCE BETWEEN GROMMET HOLE CENTERS | 16.000 INCHES NOMINAL |
