NSN 5340-00-124-2995
Part Details | SNAP HOOK
5340-00-124-2995 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: 2114852, 2114852, 5340-00-124-2995, 00-124-2995, 5340001242995, 001242995
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-124-2995 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT SHANK

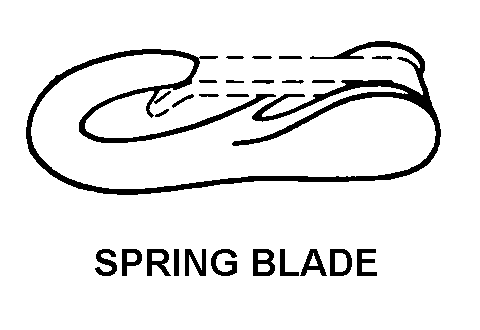

SPRING BLADE
Cross Reference | NSN 5340-00-124-2995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2114852 | 88277 | BOEING COMPANY, THEDBA BOEING |
| 2114852 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
Technical Data | NSN 5340-00-124-2995
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | SPRING BLADE |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END IN SAME PLANE AS HOOK END |
| END CONNECTION STYLE | STRAIGHT SHANK |
