NSN 5340-00-124-7324
Part Details | T BRACKET
5340-00-124-7324 A rigid item generally of flat material which resembles the letter T.It has two interior angles (usually right angles) which together equal 180 degrees (3.141 radians). It is designed to position, align and/or support an item(s) in relationship to another. Excludes PLATE, T and BEAM, STRUCTURAL.
Alternate Parts: 10111495, 5340-00-124-7324, 00-124-7324, 5340001247324, 001247324
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-7324 | 41080 ( BRACKET, T ) |
REFERENCE DRAWINGS & PICTURES

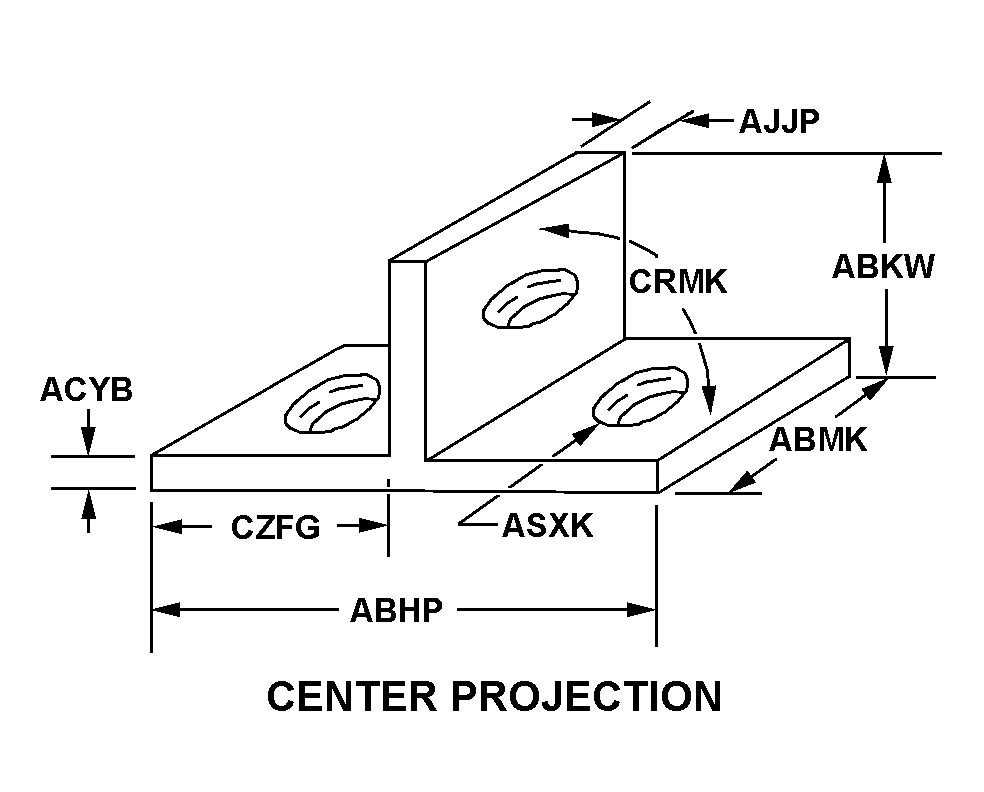

CENTER PROJECTION
Cross Reference | NSN 5340-00-124-7324
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10111495 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-124-7324
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CENTER PROJECTION |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| HOLE QUANTITY | 2 |
| MOUNTING HOLE TYPE | PLAIN |
| SPECIAL FEATURES | STUD CENTER SECTION |
