NSN 5340-00-127-5050
Part Details | PAD EYE
5340-00-127-5050 A rigid, metal, platelike item with an edgewise projection containing one or more openings. The opening is usually round or elliptical in shape. It is normally welded, bolted, or otherwise fixed to a structure. It is used as a catch or point of attachment for other items such as hooks, rope, and the like. Excludes, STAPLE, HASP; STRIKE, CATCH; and BRACKET, EYE, NON ROTATING SHAFT. See also ADAPTER (1), AIRCRAFT MOORING; ADAPTER (1), AIRCRAFT TOWING; TOWING EYE, AIRCRAFT; BOLT, EYE; COUPLER (as modified); and HASP, HINGED.
Alternate Parts: 4347619, 43476191, 4347619-1, 5340-00-127-5050, 00-127-5050, 5340001275050, 001275050
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 27, 1968 | 00-127-5050 | 15650 ( PAD EYE ) |

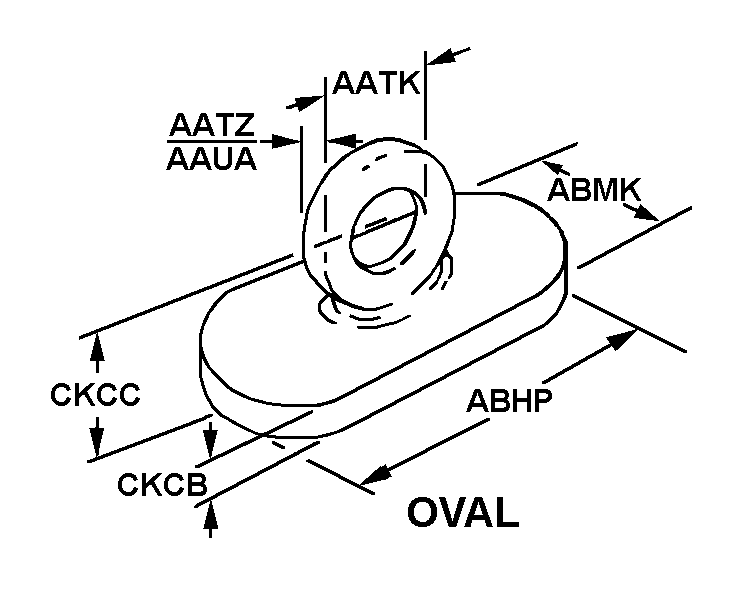

REFERENCE DRAWINGS & PICTURES
OVAL
Cross Reference | NSN 5340-00-127-5050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4347619 | 6N299 | AGCO CORPPARTS OPN |
| 4347619-1 | 92392 | ALLIS-CHALMERS CORP |
Technical Data | NSN 5340-00-127-5050
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OVAL |
| EYE INSIDE DIAMETER | 1.375 INCHES NOMINAL |
| EYE STOCK THICKNESS | 1.312 INCHES NOMINAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.438 INCHES NOMINAL |
| PAD THICKNESS | 0.500 INCHES NOMINAL |
| DISTANCE BETWEEN EYE CENTERLINE AND PAD BOTTOM | 3.250 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY DIAMETER | 0.562 INCHES NOMINAL |
| CONSTRUCTION | CAST |
