NSN 5340-00-128-6508
Part Details | RIGID CASTER
5340-00-128-6508 A caster designed to maintain the rotation of the wheel(s) or spherical constructed item in one plane.
Alternate Parts: R30ER3, R3-0ER3, 5340-00-128-6508, 00-128-6508, 5340001286508, 001286508
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 12, 1973 | 00-128-6508 | 06187 ( CASTER, RIGID ) |

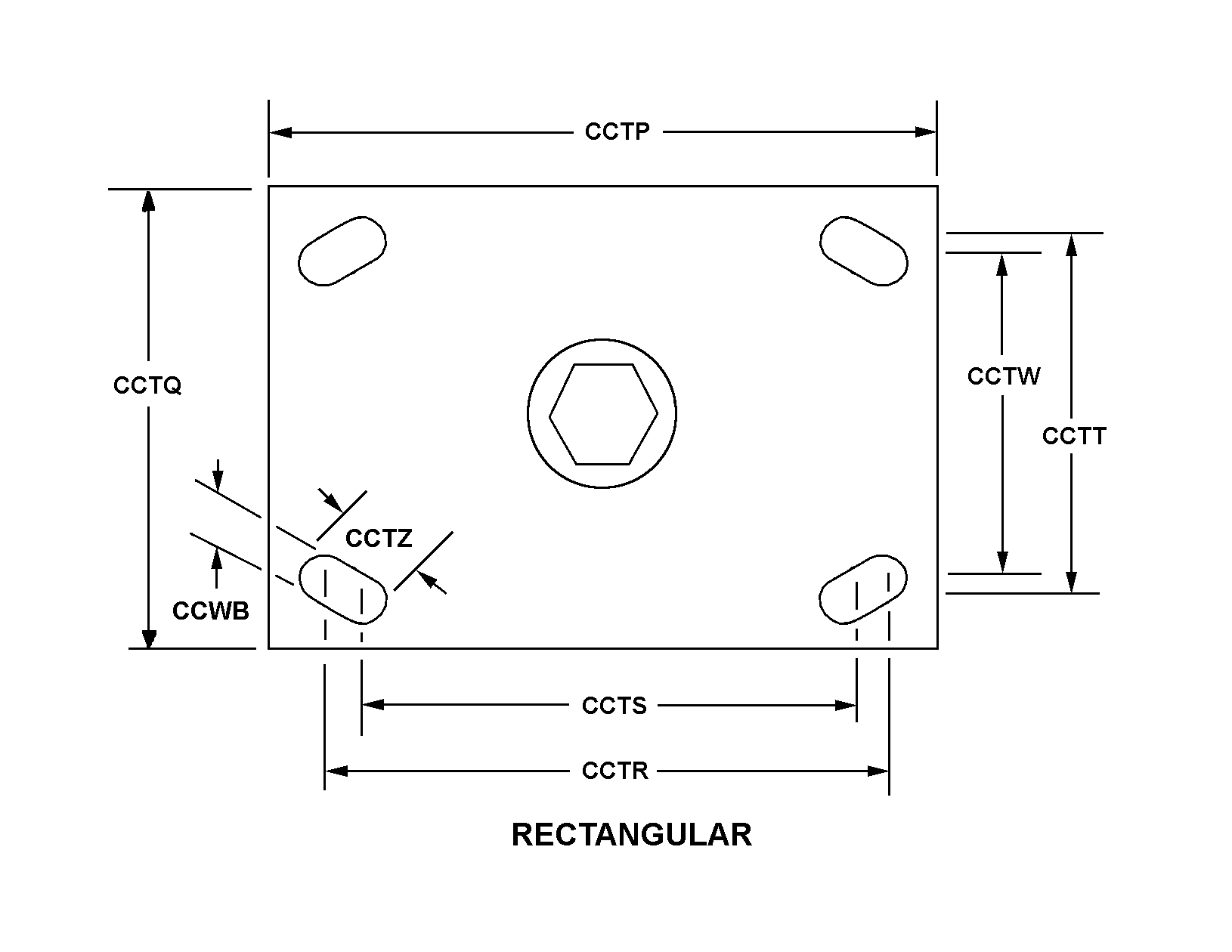

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
RIGID
Cross Reference | NSN 5340-00-128-6508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R3-0ER3 | 83445 | AEROL CO., INC.DBA AEROL CO |
Technical Data | NSN 5340-00-128-6508
| Characteristic | Specifications |
|---|---|
| SAFE OPERATING LOAD RATING | 200.0 POUNDS MAXIMUM |
| STYLE DESIGNATOR | RIGID |
| WHEEL DIAMETER | 3.000 INCHES NOMINAL |
| TREAD WIDTH | 1.625 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 4.380 INCHES NOMINAL |
| PLATE STYLE | RECTANGULAR |
| CASTER PLATE LENGTH | 4.630 INCHES NOMINAL |
| CASTER PLATE WIDTH | 3.630 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 3.630 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 3.500 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 2.630 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 2.500 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT LENGTH | 0.563 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT WIDTH | 0.375 INCHES NOMINAL |
| WHEEL BEARING TYPE | J ANY ACCEPTABLE |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | BUILT UP |
