NSN 5340-00-131-7349
Part Details | LOCKING STAY
5340-00-131-7349 A device designed to support either a slotted (sliding action) or a hinged device to support in the unfolded or extended position. Commonly used to brace and/or lock into position such items as card table legs, chest lids, folding counters, desk tops and trunk lids.
Alternate Parts: 2060325212, 206-032-521-2, 5340-00-131-7349, 00-131-7349, 5340001317349, 001317349
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 11, 1968 | 00-131-7349 | 67545 ( STAY, LOCKING ) |

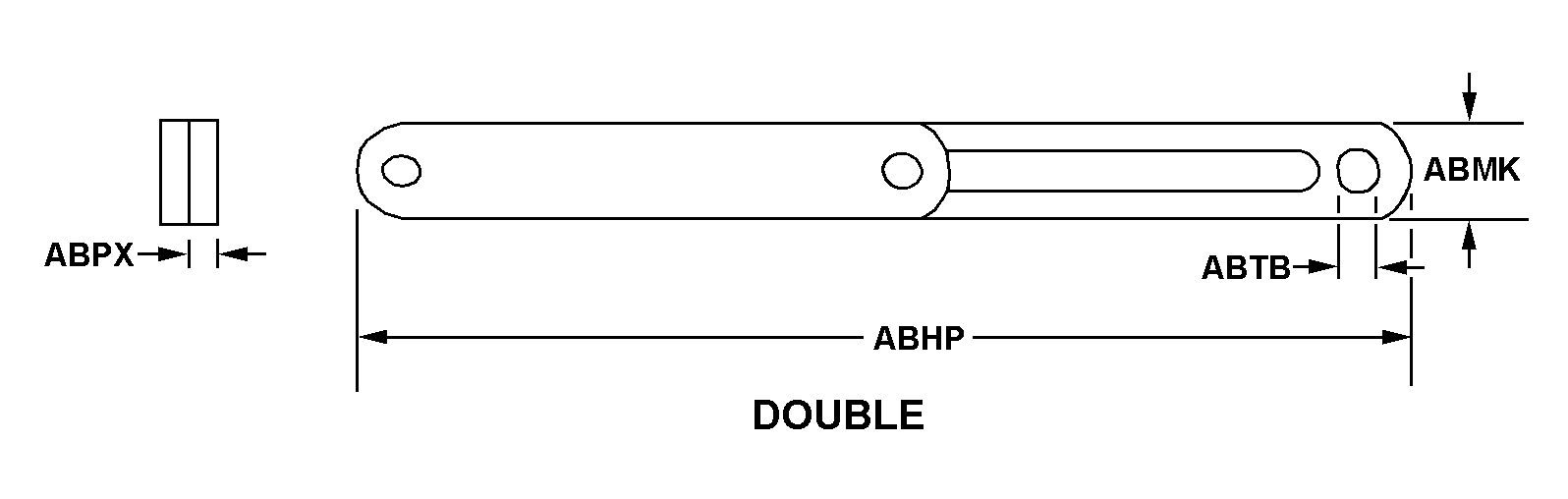

REFERENCE DRAWINGS & PICTURES
DOUBLE
Cross Reference | NSN 5340-00-131-7349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-032-521-2 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5340-00-131-7349
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5355 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | DOUBLE |
| OVERALL LENGTH | 1.520 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.055 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.127 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
