NSN 5340-00-134-3462
Part Details | SWIVEL CASTER
5340-00-134-3462 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Alternate Parts: 10699EX2N, 10699X2, 10699EX2N, 5340-00-134-3462, 00-134-3462, 5340001343462, 001343462
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 04, 1969 | 00-134-3462 | 06188 ( CASTER, SWIVEL ) |
REFERENCE DRAWINGS & PICTURES

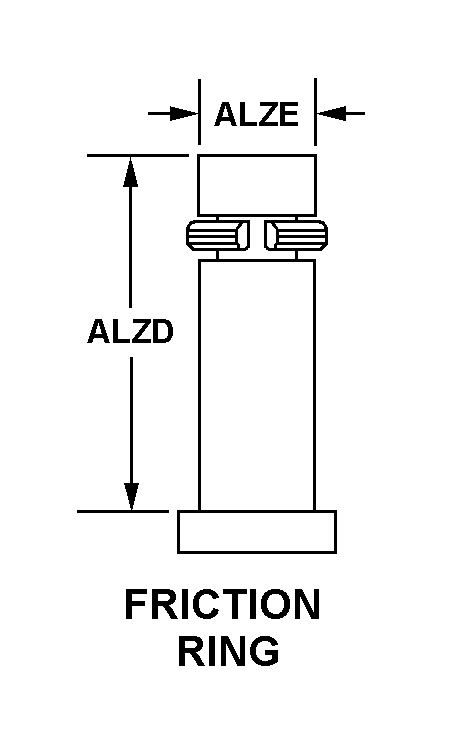

FRICTION RING
SWIVEL OFFSET
Cross Reference | NSN 5340-00-134-3462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10699EX2N | 96266 | ALBION INDUSTRIES, INC. |
| 10699X2 | 06004 | STEWART-WARNER BASSICK CORP |
| 10699EX2N | 06004 | STEWART-WARNER BASSICK CORP |
Technical Data | NSN 5340-00-134-3462
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT AND LOCATION | ZINC BODY |
| STYLE DESIGNATOR | SWIVEL OFFSET |
| WHEEL DIAMETER | 2.500 INCHES NOMINAL |
| TREAD WIDTH | 0.812 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 2.938 INCHES NOMINAL |
| STEM STYLE | FRICTION RING |
| STEM LENGTH | 1.375 INCHES NOMINAL |
| STEM DIAMETER | 0.438 INCHES NOMINAL |
| WHEEL BEARING TYPE | K ANY ACCEPTABLE |
| SWIVEL BEARING TYPE | E ANY ACCEPTABLE |
| SWIVEL BEARING ARRANGEMENT | TWO LEVEL |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
