NSN 5340-00-135-5753
Part Details | ACCESS COVER
5340-00-135-5753 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 6860863, 5340-00-135-5753, 00-135-5753, 5340001355753, 001355753
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 06, 1969 | 00-135-5753 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

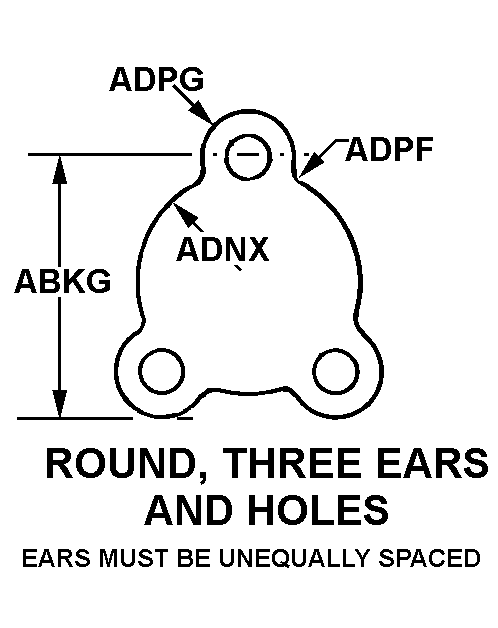

ROUND, THREE EARS AND HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-135-5753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6860863 | 73342 | ALLISON TRANSMISSION, INC. |
Technical Data | NSN 5340-00-135-5753
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | SPECIAL |
| MATERIAL | MAGNESIUM ALLOY AZ92A |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4434,T6 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| PERIPHERAL SHAPE STYLE | ROUND, THREE EARS AND HOLES |
| BOLT CIRCLE DIAMETER | 4.625 INCHES NOMINAL |
| BODY RADIUS | 2.312 INCHES NOMINAL |
| INVERTED RADIUS | 0.360 INCHES NOMINAL |
| EAR RADIUS | 0.400 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 8 CIRCULAR RECESS |
| FLANGE THICKNESS | 0.280 INCHES NOMINAL |
| BODY THICKNESS | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.339 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |
