NSN 5340-00-136-2876
Part Details | PAWL FASTENER
5340-00-136-2876 A self-contained item with a knob or a key actuated pawl, designed to fasten panels, doors, and the like, to frames or adjoining surfaces. The pawl may be preset to accommodate frames or surfaces of a specific thickness, or may be adjustable to accommodate frames or surfaces of variable thicknesses. For items with adjustable pawls, the pawl must be actuated through continual rotation of the knob or key until the pawl engages the adjoining surface.
Alternate Parts: 241020110, 24-10-201-10, 5340-00-136-2876, 00-136-2876, 5340001362876, 001362876
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 15, 1969 | 00-136-2876 | 28416 ( FASTENER, PAWL ) |
REFERENCE DRAWINGS & PICTURES

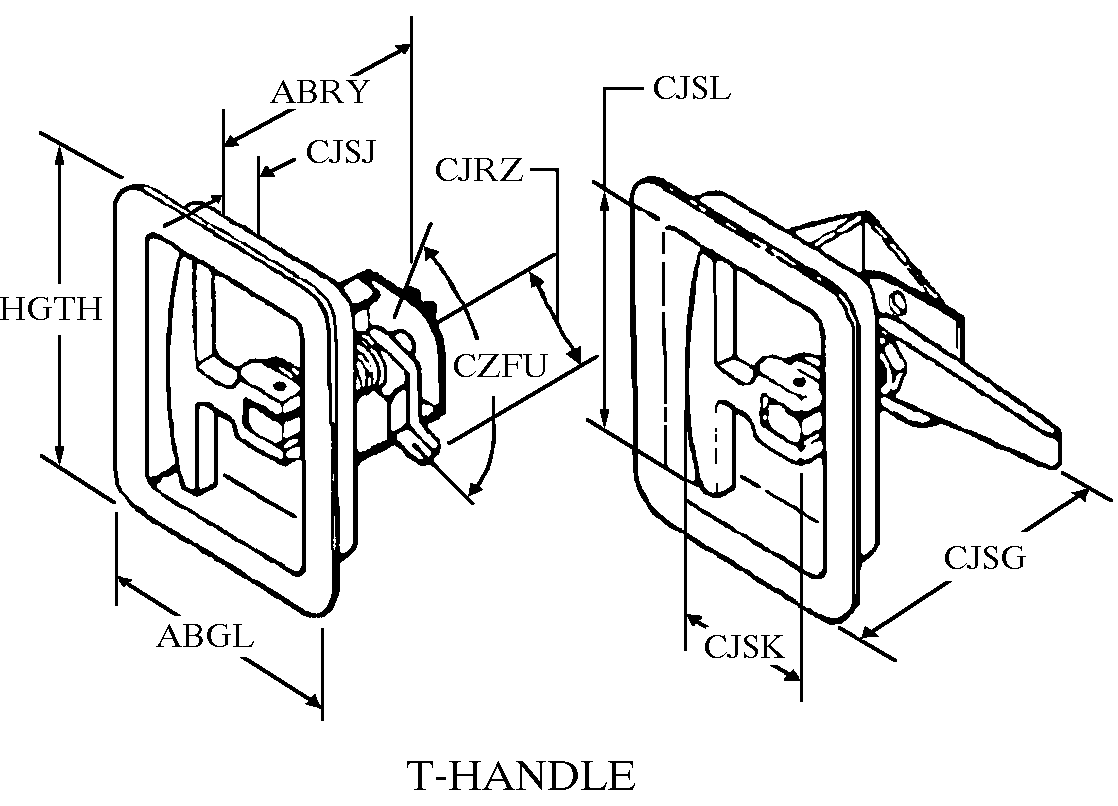

T-HANDLE
Cross Reference | NSN 5340-00-136-2876
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24-10-201-10 | 94222 | SOUTHCO, INC. |
Technical Data | NSN 5340-00-136-2876
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | T-HANDLE |
| WIDTH | 3.500 INCHES NOMINAL |
| LENGTH | 1.531 INCHES NOMINAL |
| PAWL LENGTH FROM ACTUATING SHAFT CENTER TO PAWL END | 1.344 INCHES NOMINAL |
| MOUNTING PLATE TO PAWL DISTANCE | 0.875 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| RECESS CUP DEPTH | 0.813 INCHES NOMINAL |
| GRIP HANDLE LENGTH FROM MOUNTING HOLE | 1.563 INCHES NOMINAL |
| GRIP HANDLE WIDTH | 3.250 INCHES NOMINAL |
| HEIGHT | 4.500 INCHES NOMINAL |
| PAWL SWING ANGLE | 90.0 DEGREES NOMINAL |
| PAWL TYPE | OFFSET |
| OPERATIONAL DIRECTION | LEFT-HAND |
| PAWL ACTUATION METHOD | GRIP HANDLE |
