NSN 5342-00-195-3036
Part Details | THREADED END TENSIONING TIE ROD
5342-00-195-3036 A rod having various cross-sectional shaped bodies with one right hand and one left hand integral externally threaded end. See also TURNBUCKLE; TURNBUCKLE BODY; and ROD, THREADED END.
Alternate Parts: 1119087, 1119087, 5342-00-195-3036, 00-195-3036, 5342001953036, 001953036
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-195-3036 | 20759 ( TIE ROD, TENSIONING, THREADED END ) |

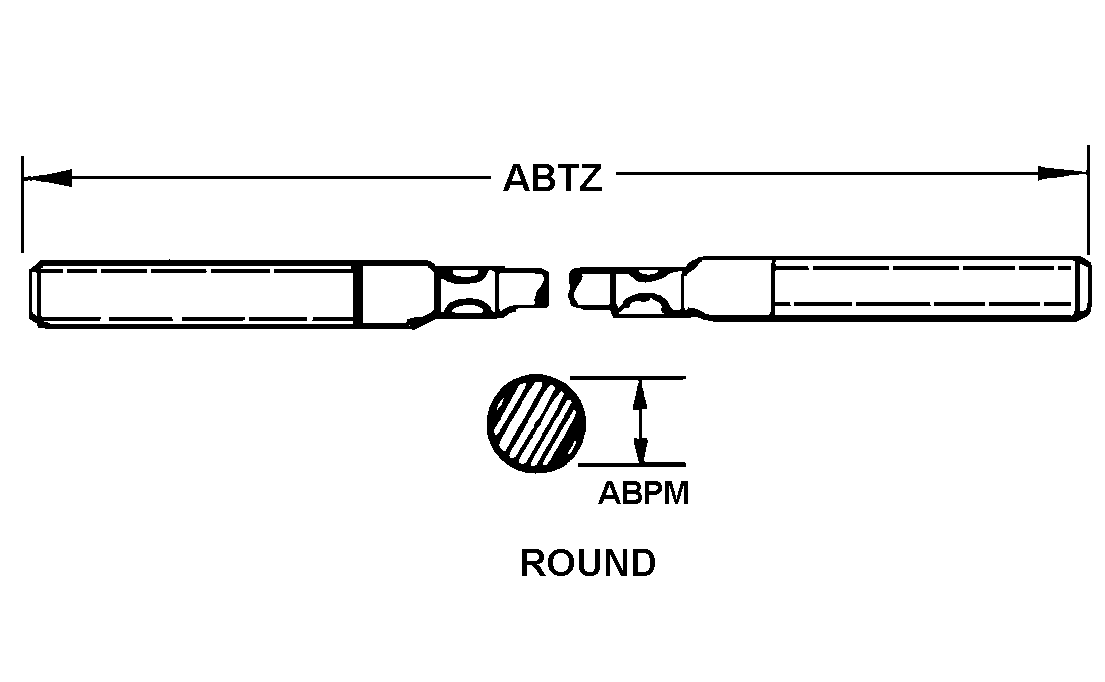

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5342-00-195-3036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1119087 | 88277 | BOEING COMPANY, THEDBA BOEING |
| 1119087 | 18355 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5342-00-195-3036
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 9.813 INCHES NOMINAL |
